8
Mega Pixel30
FPS27.2x
Digital Zoom
Catch all the details
Zoom in and capture engaging details with F17-8M's powerful 8 megapixel sensor and 27.2x digital zoom.
Easy to connect, easy to display
Connect with the convenience of HDMI or VGA input and output to your projector, monitor, or computer.
Learn from any angle
Create dynamic lessons with a flexible gooseneck that gives you a wide range of motion allowing your students to see details from all angles.

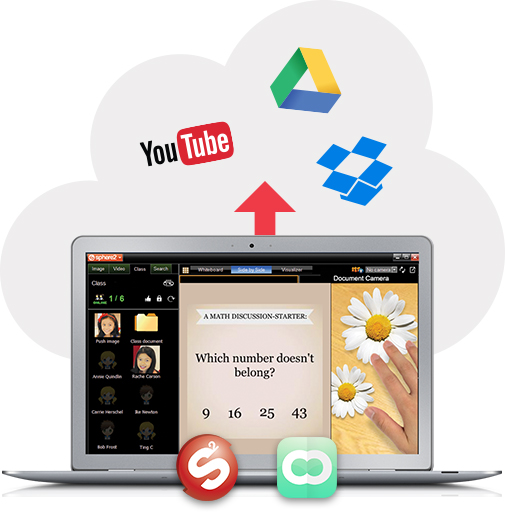

Create exciting moments
Use AVer's exclusive Sphere2 & ClassSend Software Suite to create, collaborate, upload, and share your lesson plan materials through sites such as YouTube, Google Drive and Dropbox.
America's best document camera warranty program
The F17-8M has the industry's only 5-year bumper-to-bumper (all-inclusive) doc cam warranty with 5-year free 2-way RMA shipping and 5-year worry-free standard advanced replacement program.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
With a compact and robust design and free software for screencasting, manipulating and sharing video, the AVer F17HD is one of the best HD cameras available.Fractus Learning | Read Case Studies
Specifications
| Sensor1/3.2" CMOS | Pixel count8 megapixels |
|---|---|
| Zooming27.2X digital zoom | Shooting areaMax. 22.83" x 12.83" (580mm x 326mm) |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/3.2" CMOS | Pixel count | 8 megapixels | Effective pixel | 3840 H x 2160 V |
| Frame rate | 30 fps (max.) | White balance | Auto / Manual | Exposure | Auto / Manual |
| Image mode | Sharp / Graphics / Motion / Microscope | Effect | Color / B/W / Negative / Mirror / Rotate / Freeze | RGB output | 1920x1080, 1280x1024, 1280x720, 1024x768, 1280x800 |
| Optics | |||||
|---|---|---|---|---|---|
| Focus | Auto / Manual | Shooting area | Max. 22.83" x 12.83" (580mm x 326mm) | Zooming | 27.2X digital zoom |
| Function | |||||
|---|---|---|---|---|---|
| Image effect | Color / B&W / Negative / Mirror / Reverse / Freeze | White balance / exposure / night view | Auto / Manual | Picture-in-picture | Yes |
| Split screen | Yes | Presentation tools | Spotlight (Yes), Visor (Yes) | Capture mode | Single / Continuous |
| Remote control | Yes | Image storage | 240 Frames(XGA) ; 80 Frames(8M Pixel) | Onboard AV recording | Yes |
| Onboard annotation | No | ||||
| Compatibility | |||||
|---|---|---|---|---|---|
| Operating systems | Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.9 or above (Intel based), Chrome OS 29 or above | AVer software | AVer A+ software suite (Sphere 2, PowerPoint plug-in, Flash-Plug-in), Sphere Lite (for Chromebook) | Interactive whiteboard compatibility | Yes with AVerVision Flash plug-in *certain limitations apply |
| Power | |||||
|---|---|---|---|---|---|
| Power source | DC 12V, 2A, 100-240V, 50-60Hz | Consumption | 12 Watts (lamp off); 12.8 Watts (lamp on) | ||
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp type | LED light | ||||
| Input/Output connections | |||||
|---|---|---|---|---|---|
| RGB input | 15-Pins D-sub (VGA) | HDMI input | Yes | Composite video | RCA Jack (through optional CVBS Adapter) |
| RGB output | 15-Pins D-sub (VGA) | DC 12V input | Power Jack | USB | Mini-USB 2.0 (Connect to PC), Type-A (For USB Drive) |
| SD | SD/SDHC (Up to 32GB) | DC 12V input | Power Jack | MIC input | Built in & 3.5mm jack, pink |
| Dimension | |||||
|---|---|---|---|---|---|
| Operating(WxHxD) | 7.87" x 20.67" x 14.96" 200mm x 525mm x 380mm (+/-2mm include rubber foot but IR cover not included) | Folded | 9.05" x 2.87" x 12" 230mm x 73mm x 305mm (+/-2mm include rubber foot but IR cover not included) | Weight | 5.51 lbs (2.5kg) |
| External storage | |||||
|---|---|---|---|---|---|
| Secure Digital (SDHC) | 1GB ~ 32GB (FAT32) | USB Flash Drive | 2GB ~ 64GB (FAT32) | ||
| Package contents | |||||
|---|---|---|---|---|---|
| F17-8M | |||||
| 3' USB cable (Mini type) | |||||
| RGB cable | |||||
| Power adapter 12V / 2A | |||||
| Remote control (including batteries) | |||||
| Quick guide |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Microscope adapter | Part number: VISIFSEMA | Carrying bag | Part number: VISIOCPCC | Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") |
| Power adapter | PPDC12VPA | ||||
| Others | |||||
|---|---|---|---|---|---|
| Warranty | 5 years | Advanced replacements | During warranty period | Free 2-way RMA shipping | Yes, during warranty period within Continental USA (including HI & AK) |
| Kensington Lock Option | Yes | Ordering Info | SKU: VISIF178M | ||
