1080
Pixel Count30
FPS12x
Digital ZoomP2P
Wi-Fi

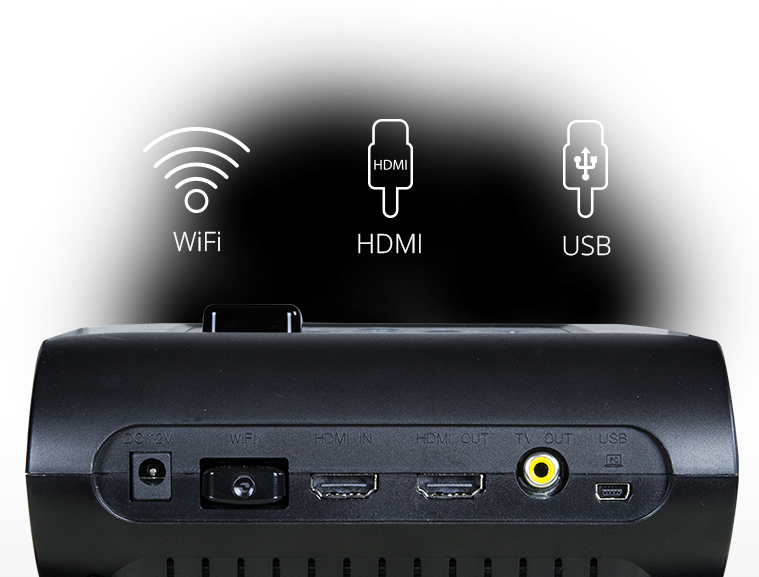

Jack of all trades
Consider this document camera wireless, HDMI, and USB friendly! Whether you prefer teaching next to a big screen or simply at your desk, the varying features give you more connectivity options to suit your needs.
Wi-Fi ready!
With built-in, dual-band Wi-Fi, the F70W document camera is capable of operating on the 2.4 GHz or 5 GHz wireless bands. The F70W document camera's wireless option also gives you free range to move in the classroom with an 6.5-hour onboard battery.
Connect wirelessly with
Peer-to-Peer WiFi
With the Peer-to-Peer (P2P) WiFi technology, the F70W creates a direct WiFi connection to your computer (Win10/MacOS)! This dedicated connection ensures maximum performance and reliability without interfering with your existing school or work WiFi or Ethernet connection(s).
Engaging content
Showcase vivid details in your presentation and create a captivating lesson with the document camera's 1080p resolution at 30 fps and 12x zoom features.
Move it, twist it, or bend it!
Planning a flipped classroom lesson? Turn learning upside down with the F70W document camera's flexible design and turn everyday lessons into fun learning experiences.
Enhance lessons
Advance your 1:1 classroom engagement with our exclusive Sphere2 & ClassSend Software Suite, which allows you to create, upload, and share your material via sites such as YouTube™, Dropbox™, Google Drive, etc.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
Specifications
| Sensor1/2.7″ CMOS | Pixel count1080HD |
|---|---|
| Zooming12X digital zoom | Shooting areaMax. 13.3" x 9.88" (338mm x 251mm) |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/2.7″ CMOS | Pixel count | 1080HD | Effective pixel | 1920x1080 |
| Frame rate | 30 fps (max.) | White balance | Auto / Manual | Exposure | Auto / Manual |
| Image mode | Sharp / Graphics / Microscope | Effect | Color / B/W / Negative / Mirror / Rotate / Freeze | RGB output | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768, 1280x800 |
| HDMI output | HD 1080p 50Hz/60Hz; HD 720p 50Hz/60Hz; 1024x768 60Hz; | Composite output | 720x480 (NTSC) | ||
| Optics | |||||
|---|---|---|---|---|---|
| Focus | Auto / Manual | Shooting area | Max. 13.3" x 9.88" (338mm x 251mm) | Zooming | 12X digital zoom |
| Function | |||||
|---|---|---|---|---|---|
| Image effect | Color / B&W / Negative / Mirror / Reverse / Freeze | White balance / exposure / night view | Auto / Manual | Picture-in-picture | Yes |
| Split screen | Yes | Presentation tools | Spotlight (Yes), Visor (Yes) | Capture mode | Single / Continuous |
| Remote control | Yes | Image storage | SD card and built-in memory (JPEG Only) | Onboard AV recording | Yes |
| Onboard annotation | No | Wireless streaming | To Apple iPad via standard Wi-Fi access point To Android tablets via standard Wi-Fi access point To computer (PC or Mac) via Wi-Fi access point | ||
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| USB UVC / UAC compliant | Yes | Wireless network | 802.11 b/g/n/ac | Dual band | 5GHz* * Live streaming is not supported in an 2.4GHz environment |
||
| Wireless security | Supports WEP, AES, TKIP and AES+TKIP, 802.1x | P2P | Yes | Operating systems (computer) | Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.9 or above (Intel based), Chrome OS 29 or above | ||
| Operating systems (tablets) | iOS 7+ (iPad2 or above) Android 4.1+ tablets |
AVer software | AVer A+ Software Suite (Sphere 2, PowerPoint Plug-in, Flash-Plug-in), Sphere Lite (for Chromebook) | Interactive whiteboard compatibility | Yes with AVerVision Flash Plug-in *certain limitations apply | ||
| Power | |||||
|---|---|---|---|---|---|
| Battery | Built-in 6-cell (7.2V / 6600 mAh) | Power source | DC 12V, 2A, 100-240V, 50-60Hz | Consumption | 12 Watts (lamp off); 12.8 Watts (lamp on) |
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp type | LED light | ||||
| Input/Output connections | |||||
|---|---|---|---|---|---|
| HDMI output | Yes | HDMI input | Yes | Composite video | RCA jack |
| USB | Mini-USB 2.0 (connect to PC) | SD | SD/SDHC (up to 32GB) | DC 12V input | Power jack |
| MIC input | 3.5mm jack, pink | Speaker output | 3.5mm jack, green | ||
| Dimension | |||||
|---|---|---|---|---|---|
| Operating | 14.96" x 7.87" x 20.67" 380mm x 200mm x 525mm (+/-2mm include rubber foot) | Folded | 12" x 9.06" x 2.87" 305mm x 230mm x 73mm (+/-2mm include rubber foot) | Weight | 5.38 lbs (2.44kg) |
| External storage | |||||
|---|---|---|---|---|---|
| Secure digital (SDHC) | 1GB ~ 32GB (FAT32) | ||||
| Package contents | |||||
|---|---|---|---|---|---|
| F70W | |||||
| Wi-Fi dongle | |||||
| 3' USB cable (Mini type) | |||||
| Power adapter 12V / 2A | |||||
| Remote control (batteries included) |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Microscope adapter | Part number: VISIFSEMA | Carrying bag | Part number: VISIOCPCC | Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") |
| Power adapter | PPDC12VPA | CVBS/RS232 cable | Part number: CVBSRS232 | ||
| Others | |||||
|---|---|---|---|---|---|
| Warranty | 5 Years (battery warranty = 1 year) | Advanced replacement | During warranty period | Free 2-way RMA shipping | Yes, during warranty period within Continental USA (Including HI & AK) |
| Kensington lock option | Yes | Operating temperature | 32° F to 95° F (0° C to 35° C) | ||
