• 8MP

    Camera
  • USB/HDMI

    Connectivity
  • USB3

    Powered
  • UVC/UAC

    Compliant
  • Built-in

    Annotation
  • 3Yr

    Warranty

Compact. Versatile. Ready to go!

The AVer M11-8M is the sleek and affordable document camera designed to meet the needs of changing learning environments. With HDMI and plug and play USB power and connectivity, the M11-8M is ready to share in the classroom or through many popular video conferencing platforms for distance learning.

Distance learning ready

The M11-8M is UVC/UAC compliant with plug and play USB connectivity and features a built-in mic. It supports integration with all popular video conferencing applications such as Zoom, Google Hangouts and Microsoft Teams so you’re ready to tackle distance learning.

zoomGoogle MeetMicrosoft Teams

Smart connectivity & power

Powered by USB, with an additional HDMI connection it’s quick and easy to power on, connect to PC or your external display! The M11-8M can connect to PCs, Chromebooks and Macs to suit your mixed computing needs.

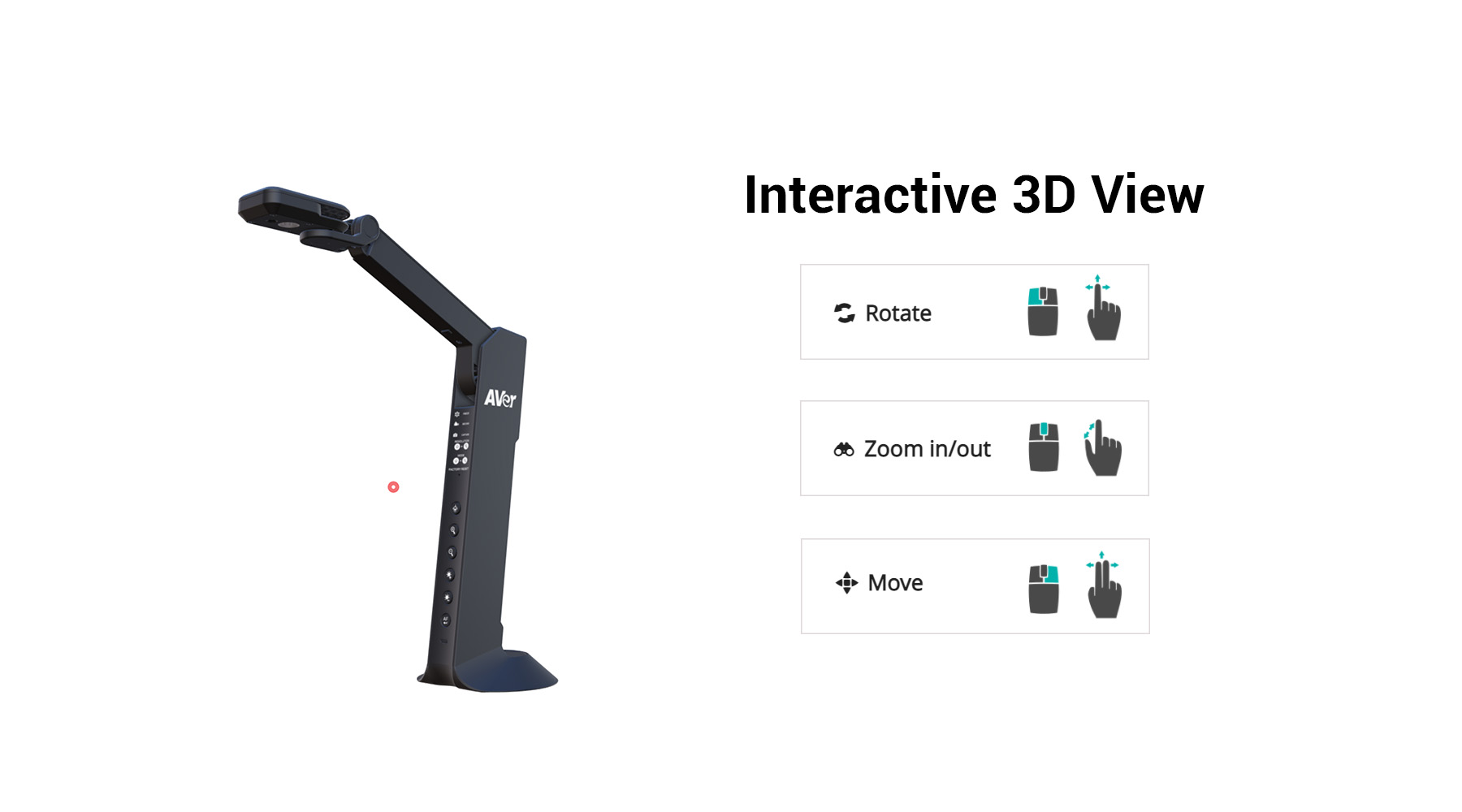

Compact design

The M11-8M has a sleek vertical design with a mechanical arm that collapses to less than 12 inches by 5 inches to maximize space in the classroom or on your desk at home. The smart swivel head provides 180 degree image rotation so you can capture objects from many angles with the document camera in place.

Software is as simple as one touch

With our updated AVerTouch software for Windows and Mac, it’s never been quicker and easier to go from set-up to show time. Build and edit new creative content with powerful multitasking and editing tools and save to the Cloud with a simple click. The M11-8M also works with our trusted Sphere Lite software on Chrome.

AVerTouchSphereLite

Strong clarity and versatility

The 8MP camera outputs video with 1080p at 60 fps to give you all you need to share content in the classroom or online. The built-in annotation capability with a mouse via HDMI opens creativity and important information highlights in your lessons!

0000000
/P
0000000
/FPS
Broadneck Elementary School
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.

Broadneck Elementary School | Read Case Studies

Specifications

Sensor1/3.06” CMOS Pixel count8 megapixels
Zooming20X digital zoom Shooting areaA3, 16.53” x 12.4” (420mm x 315mm)


Sensor 1/3.06” CMOS sensor Pixel count 8MP Frame rate Max.60fps (display)
Output resolution 3168x2376@8 fps(USB), 1920x1080@60fps(HDMI,USB), 1280x720(USB,HDMI), 1024x768(USB), 800x600(USB), 640x480(USB), 720x480(HDMI) Image rotation (FW) 0/180
Image mirror/freeze On/Off (default: off) Image white balance/
exposure
Auto/manual Image brightness/
contrast/saturation
Manual
Preview mode Normal/motion/
high quality
Playback Yes PIP/PBP Yes
Optics/Mechanism
Lens rotation (MD) Right:90°, left:90°, up:90°, down:45° Lens F-number 2.0 Shooting area A3, 16.53” x 12.4” (420mm x 315mm)
Zoom 20X digital zoom Pan Yes Focus Auto
Input/Output Connections
HDMI out 1 (support display), 1080p USB-A port USB disk (FAT32, 32GB) USB-mini port 1 (mini USB, data change to PC, 480Mbps)
Built in mic Yes SD card slot 1 (micro SD card, FAT32, 32GB ) Image rotation (FW) 0/180
Function
OSD Yes
Debugging mode Enable/disable debugging mode to capture log file for troubleshoot (default: off) FW update Can update fw by SW Microscope adapter N/A
Compatibility
USB UVC/UAC compliant Yes Support SW AVerTouch: Windows/MAC Sphere Lite: Chrome
Operating systems (computer) Windows 7, 10; Mac OS 10.13 or above; Chrome OS 75 or above
Indication
Power indication 1
Accessories
Cable USB cable (1.5M) QR Code Sheet Yes
Internal Storage
Storage for temporary data 120 pictures
External Storage
USB flash drive Support FAT32, 32GB SD Card Up to 32GB
Lighting
Light source Embedded LED lamp 0.5W
Others
Net dimension Operation (A3 shooting area), 14.19” x 4.59” x 11.94” (360.4mm x 116.7mm x 303.4mm) (H*W*D)
Folded: 11.66” x 4.59” x 5.63” (296.1mm x 116.7mm x 143.1mm) (H*W*D))
Net weight 1.83lbs + 0.66/-0.66lbs (0.83kg + 0.3/-0.3kg) Dimension (with package) 14.25” x 5.98” x 5.67” (L*W*H) Gross weight (with package) 2.86lbs (1.3kg)
Power source mini-USB in, 5V/0.9A Power consumption Lamp on: 4W max, Lamp off: 3.5W max Warranty card 3 years
Quick guide English, Chinese_TC, Japanese, German, French, Italian, Spanish (Via QR code) Language English, Chinese_TC, Chinese_SC, Japanese, German, Italian, French, Spanish, Finnish, Polish, Russian, Idonesia
Warranty
3 year warranty. All AVerVision accessories : 1 year warranty

Note: Specifications subject to change without notice
