A new level of classroom engagement awaits

The M70W is the most advanced camera AVer has ever created to empower educators and students to share, discover and learn! Designed for the modern classroom, it features 4K output for the sharpest picture, wide shooting range and rich 13 megapixels to capture fine details.
  • 4K

    Output
  • 13MP

    Camera
  • 230x

    Total Zoom
  • 5Yr

    Warranty
  • P2P

    Wi-fi

Connect your way!

The M70W includes an on-board battery and WiFi connectivity to allow complete freedom to move and share around the classroom. Multiple wired connection options such as HDMI and USB provide additional flexibility for many device types.

Connect your way!

Connect wirelessly with
Peer-to-Peer WiFi

With the Peer-to-Peer (P2P) WiFi technology, the M70W creates a direct WiFi connection to your computer (Win10/MacOS)! This dedicated connection ensures maximum performance and reliability without interfering with your existing school or work WiFi or Ethernet connection(s).

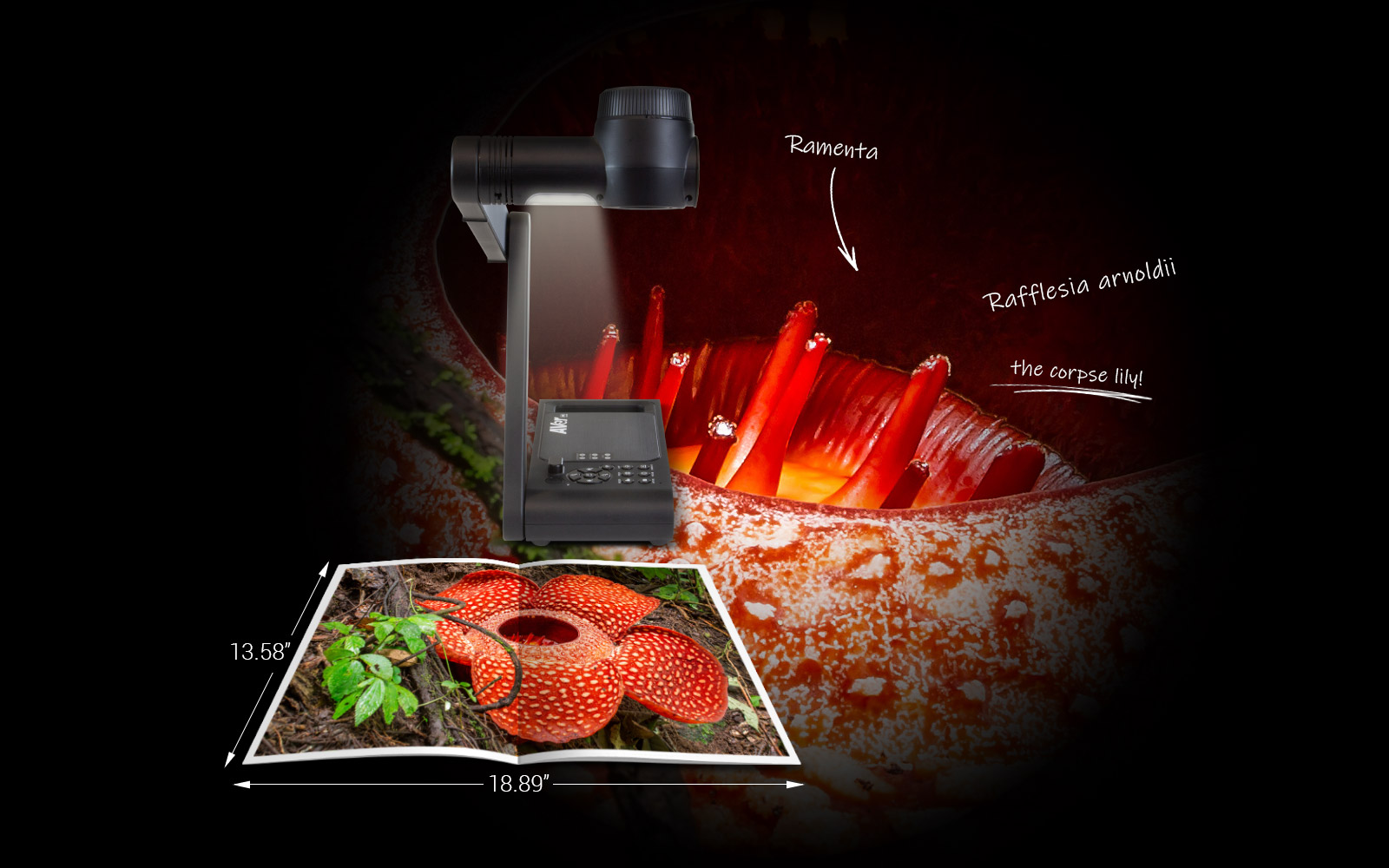

Amazing clarity and coverage

Showcase vivid details in your presentation and create a captivating experience with the document camera's 4K output at 60 fps and 10x optical/ 23x digital zoom features. The massive 18.89” × 13.58” shooting area allows you to capture and share large documents and objects like never before!

Lights
Amazing clarity and coverage
Amazing clarity and coverage
AVerTouch

Software is as simple as one touch

With our new AVerTouch software it’s never been quicker and easier to go from set-up to showtime. Build and edit new creative content with powerful multitasking and editing tools and save to the Cloud with a simple click.

one touch Connect to your document camera with one touch.

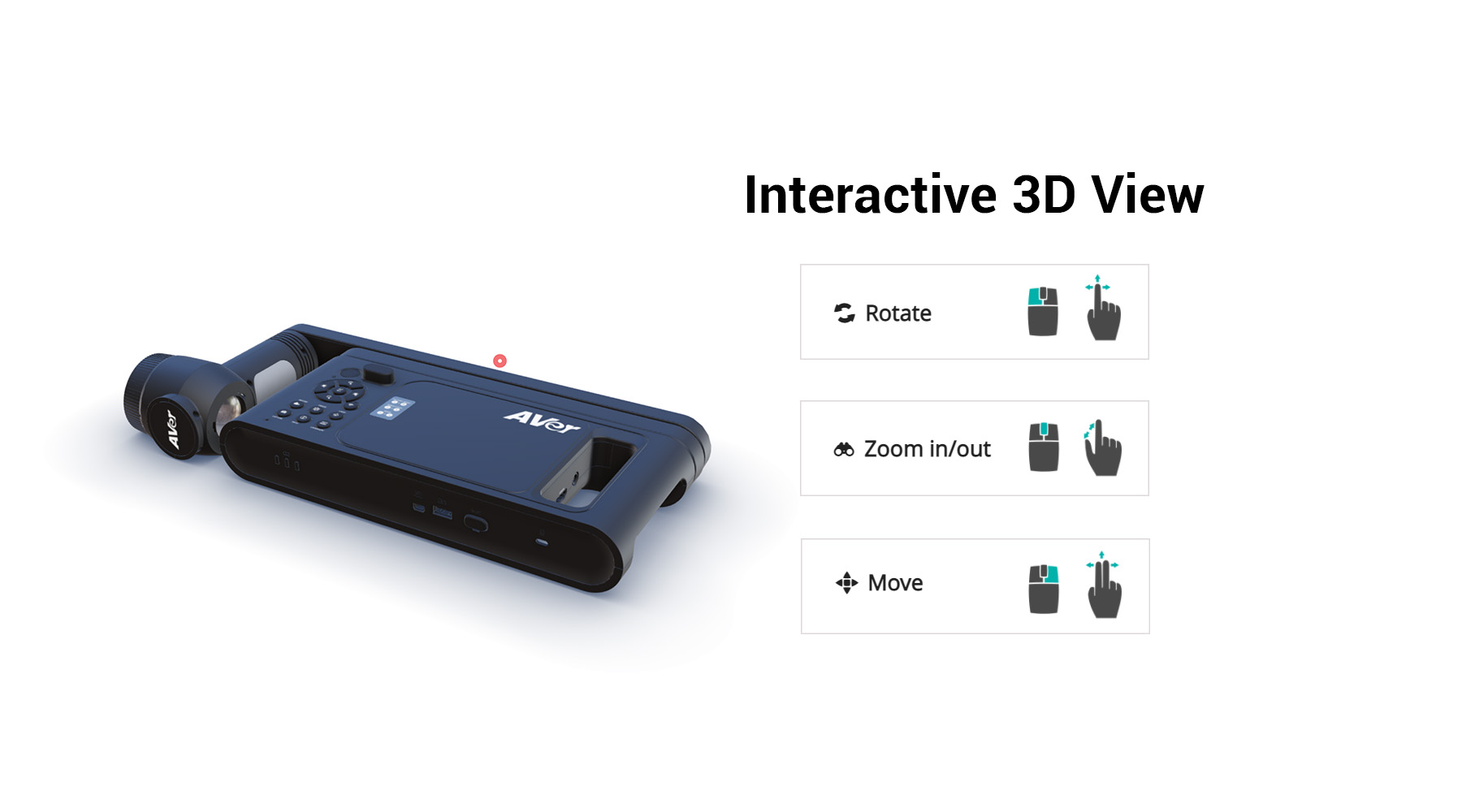

3D view
Broadneck Elementary School
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.

Broadneck Elementary School | Read Case Studies

Specifications

Sensor1/3.2” CMOS Pixel count13 megapixels
ZoomingTotal 230X maximum (10X optical x 23X digital zoom) Shooting area480mmx345mm @ 470 mm


Specifications
Sensor 1/3.2" CMOS Pixel count13 megapixels Frame rate 60 fps (max.)
Image mode Normal/ High Frame/ High Quality/ Microscope/ Infinity/ MarcoEffectRotate/ Freeze HDMI output 4K; Full HD 1080p 60Hz;
HD 720p 60Hz
FocusingAuto/ Manual/ Area (SW) Shooting area 480mm x345mm @ 470 mmZooming Total 230X maximum (10X Optical x 23X Digital zoom)
Dual mode AP/ Station DHCP (Server/Client) WiFi streaming1080P@30fps, up to 4K@30fps Dual band 5GHz recommended
P2PYes Miracast YesCompatibility 802.11a/b/g/n/ac (45 ft effective range)
Wireless security Support WEP, WPA/WPA2-Enterprise*
*EAP-PEAP, EAP-TLS
MIC Built-in Power sourceDC5V/ 2A, AC 100-240V
Consumption 8.7 Watts (lamp on)
7.7 Watts (lamp off)
USB bus power Yes (standsby mode only) Lamp typeLED light
Weight 2.6 kg (about 5.7 lbs) USB USB2.0 Type-Ax2 (WiFi dongle, USB storage)
USB Type mini-Bx1
DC 5V input Power jack
Folded363.50mm(L)*
159(W)*
76.3mm(H)
(+/-2mm include rubber foot)
Operating 587mm(L)*
159 mm(W)*
546mm(H)
(+/-2mm include rubber foot)
Software supported ePTZ, Image/ Area capture,
Picture by picture, Timer,
Cloud library,
Recording, Annotation
Package contents
M70W
Wi-Fi dongle
USB cable (Mini type)
Power adapter/ Power plug
Remote control (batteries included)
Quick Guide
Optional accessories
Carrying bagPart number: VISIOCPCC Anti-glare sheetPart number: PANTIGLA1 (A5 size 8.26" x 5.84") Microscope Adapter (28mm and 34mm Rubber Coupler included)Part number: VISIFSEMA
P2P USB WiFi DonglePart number: PPDWIFIDG
Warranty
5 year warranty
All AVerVision accessories : 1 year warranty (rechargeable battery: 1 year warranty)
Others
Ordering InfoSKU: VSIONM70W

Note: Specifications subject to change without notice
