4K Video Output
USB-C PD Powering
Supports Dual Screen Display
Multi-Camera AI Auto Switching
Multiple Connection Ports

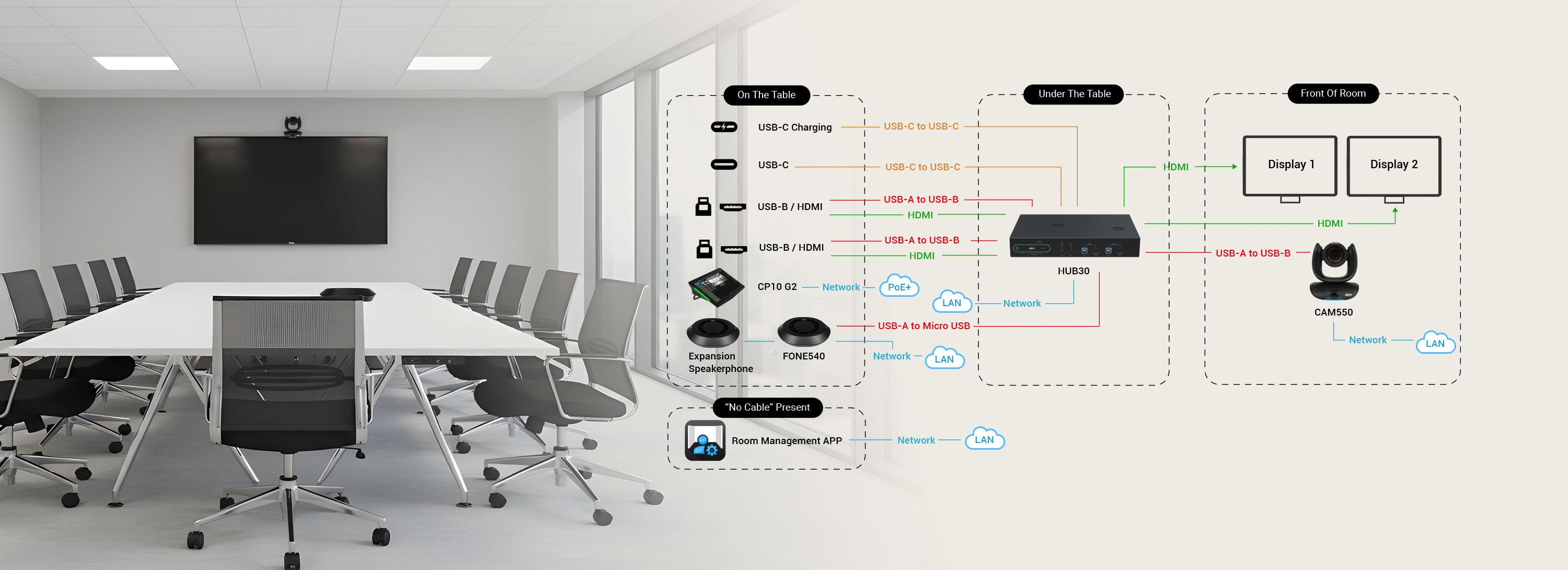

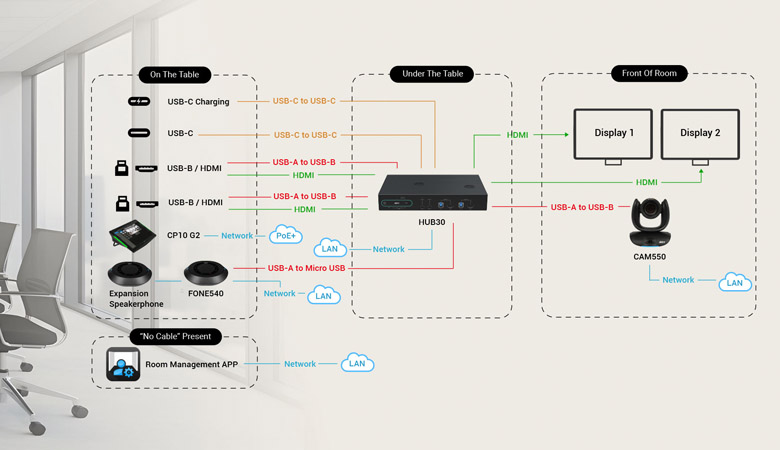

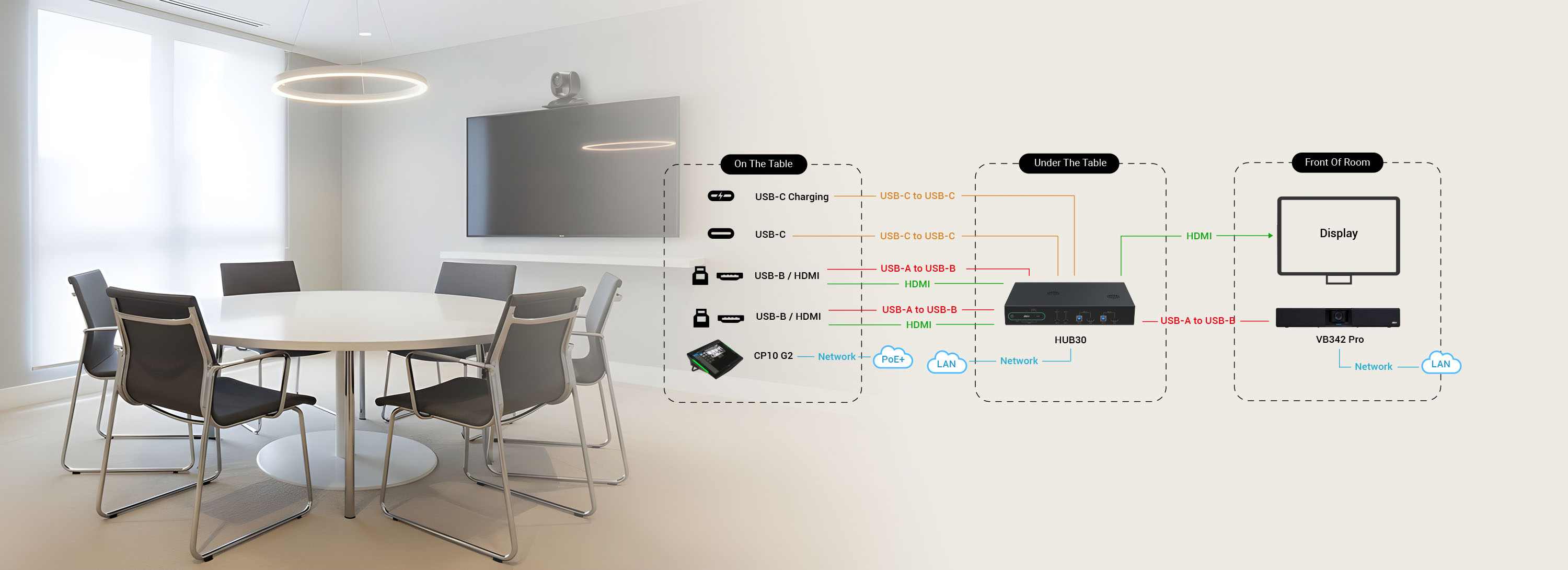

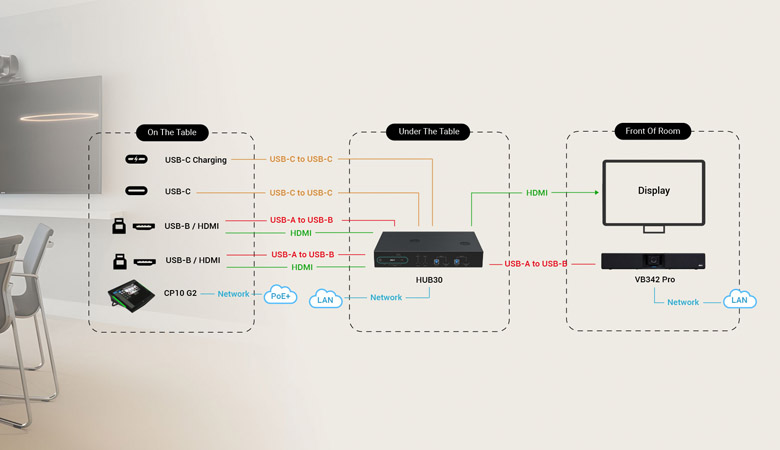

BYOD/BYOM Made Easy
Support any meeting, in any room, with HUB30’s 4x2 USB/HDMI switch and multi-port connectivity including HDMI, USB-C, and DisplayPort. Dual 4K output enables expanded displays, while 100W USB-C Power Delivery keeps laptops charged through extended sessions—ensuring seamless workflow in corporate boardrooms, hybrid spaces, and AV environments.
Intelligent Meeting Equity with ConnectAI
Paired with AVer cameras, ConnectAI enhances collaboration by recognizing active speakers and presenters, ensuring every participant is clearly seen and heard. This AI-driven experience delivers a more inclusive and equitable meeting environment.

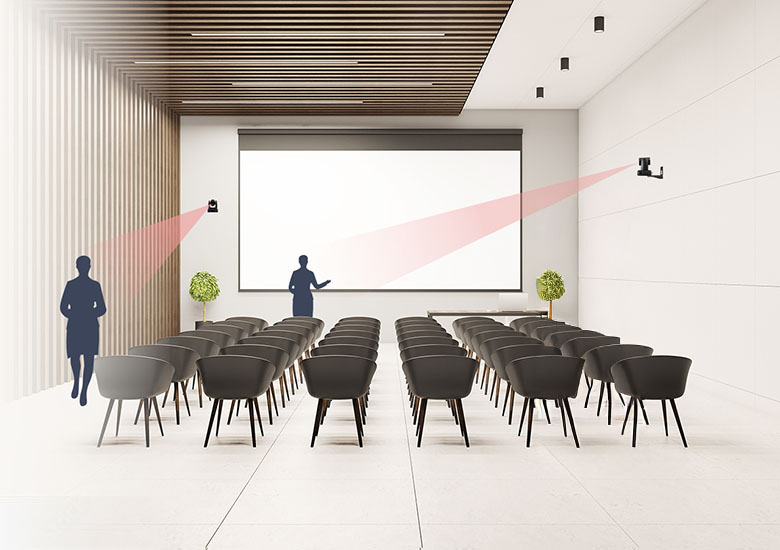

Smart Multi-Camera Switching
Instantly switch between two AVer cameras via USB+IP or IP* using advanced AI algorithms for dynamic, multi-angle coverage. Ideal for hybrid meetings, live streaming, and video production, it enables smooth transitions and automatic camera control for a broadcast-grade experience.
*NOTE: IP connection supports since firmware 0.0.0000.18
Smart Multi-Camera Switching
Instantly switch between two AVer cameras via USB or HDMI using advanced AI algorithms for dynamic, multi-angle coverage. Ideal for hybrid meetings, live streaming, and video production, it enables smooth transitions and automatic camera control for a broadcast-grade experience.
Wireless Content Sharing Engaging Presentations
Wirelessly share content through AVer’s Room Management Software for fluid transitions between speakers and devices. Create compelling presentations and professional video conferencing experiences without cables—enhancing collaboration and communication across any meeting environment.
Dual Display & Multi-User Flexibility
Boost productivity with true dual 4K display support, enabling extended, mirrored, or independent content across two screens. Ideal for multi-presenter meetings or side-by-side comparisons, the HUB30 allows two devices to stay connected and seamlessly toggle control—perfect for enterprise and education environments.

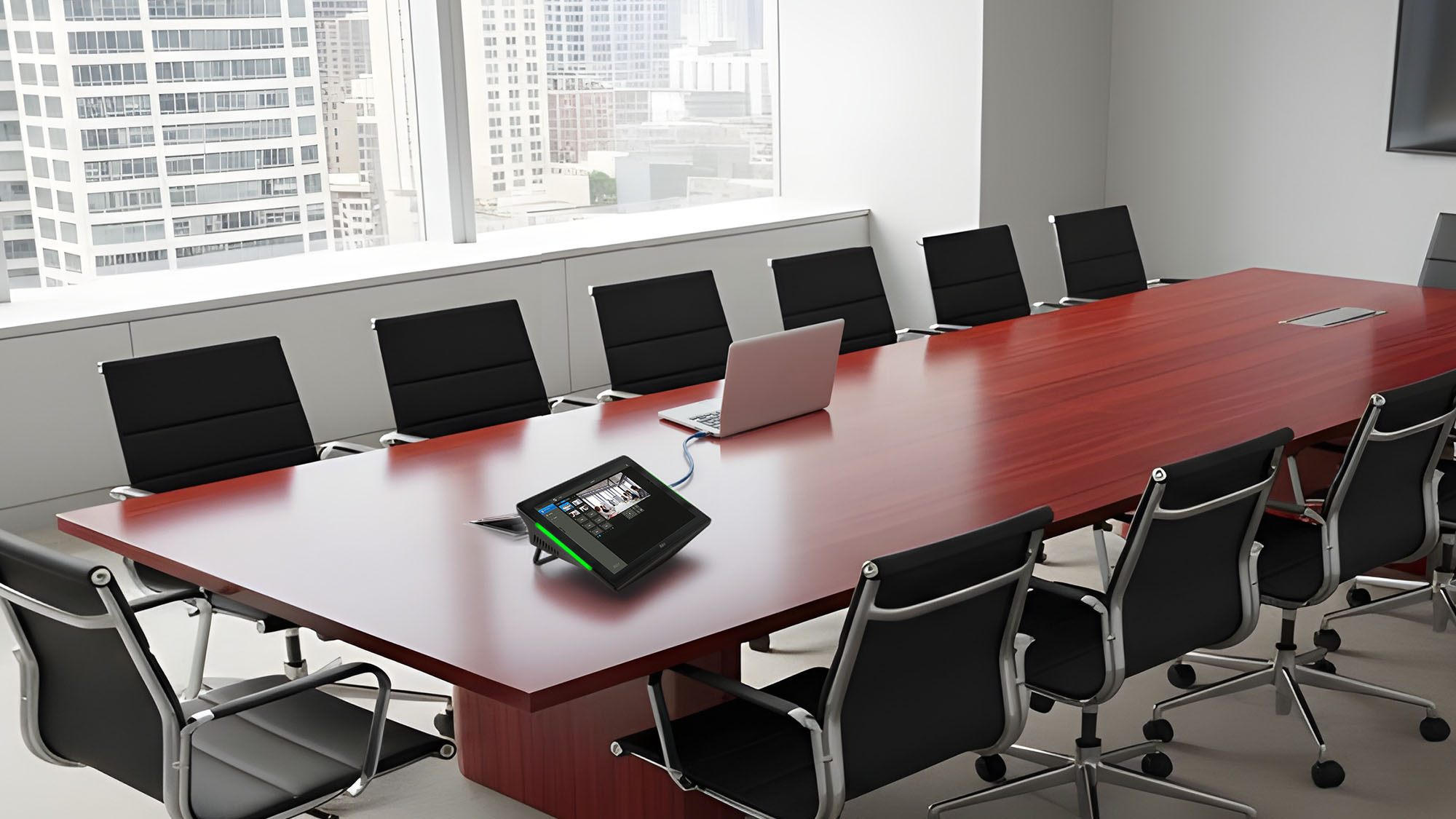

Seamless Touch Control with CP10 G2
Enhance room control with the AVer CP10 G2 touch panel, offering rapid source switching, precise volume management, and customizable presets. This intuitive interface streamlines meetings and delivers unified control of the HUB30 and connected AVer peripherals across any collaboration space.
Enjoy the unprecedented quality and support
AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!
* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.
Specifications

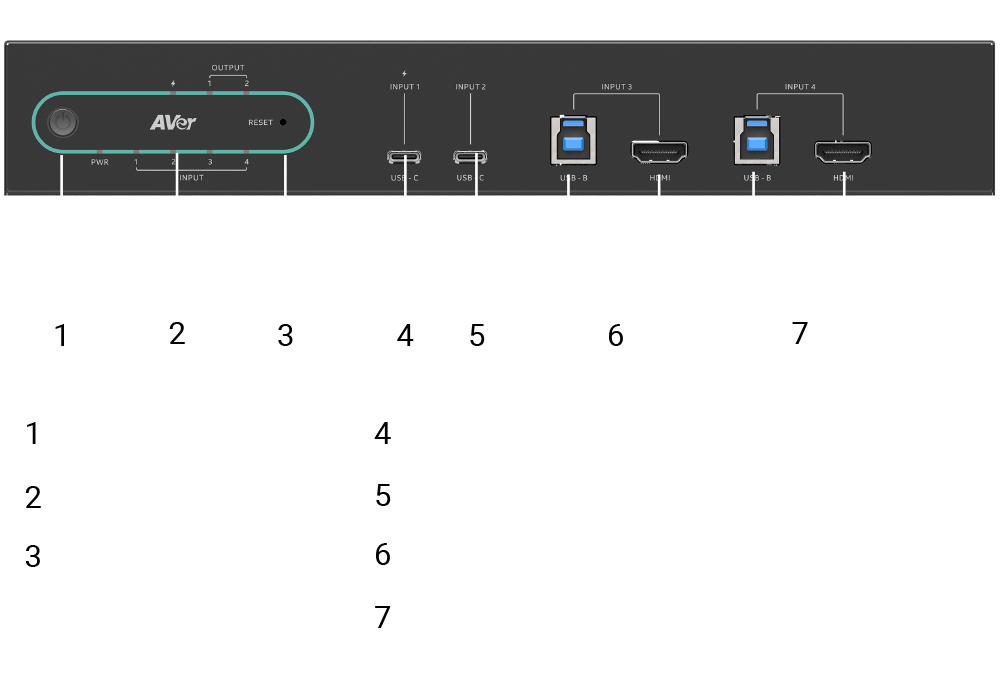

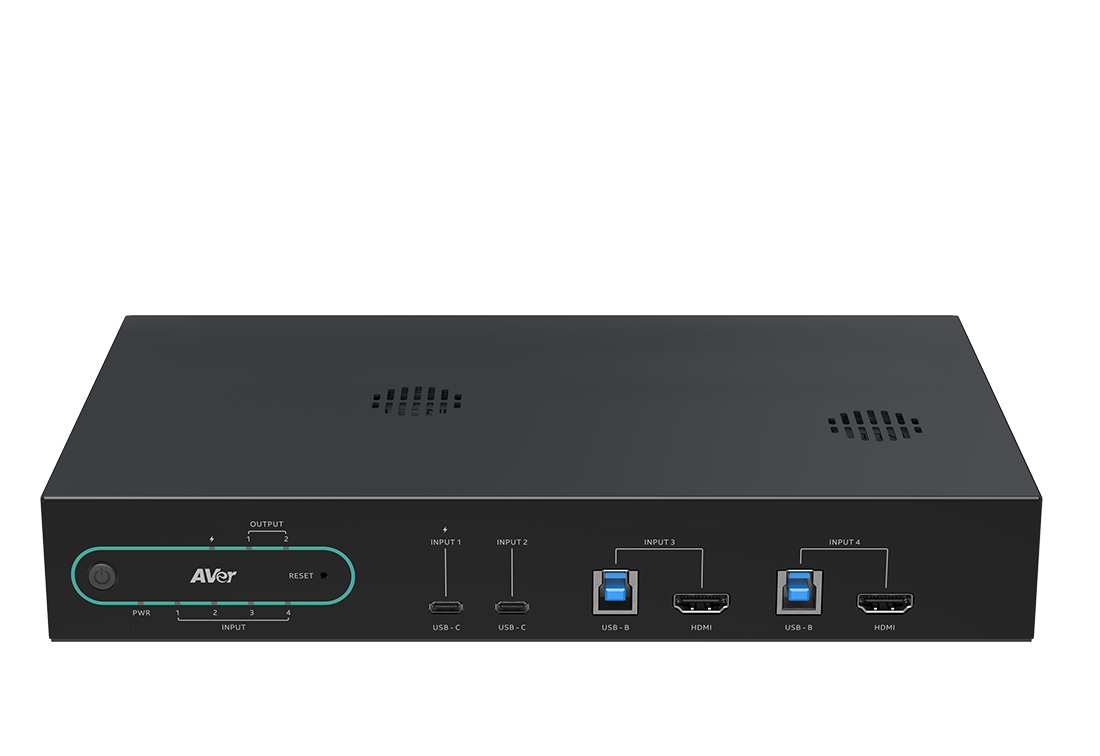

Front

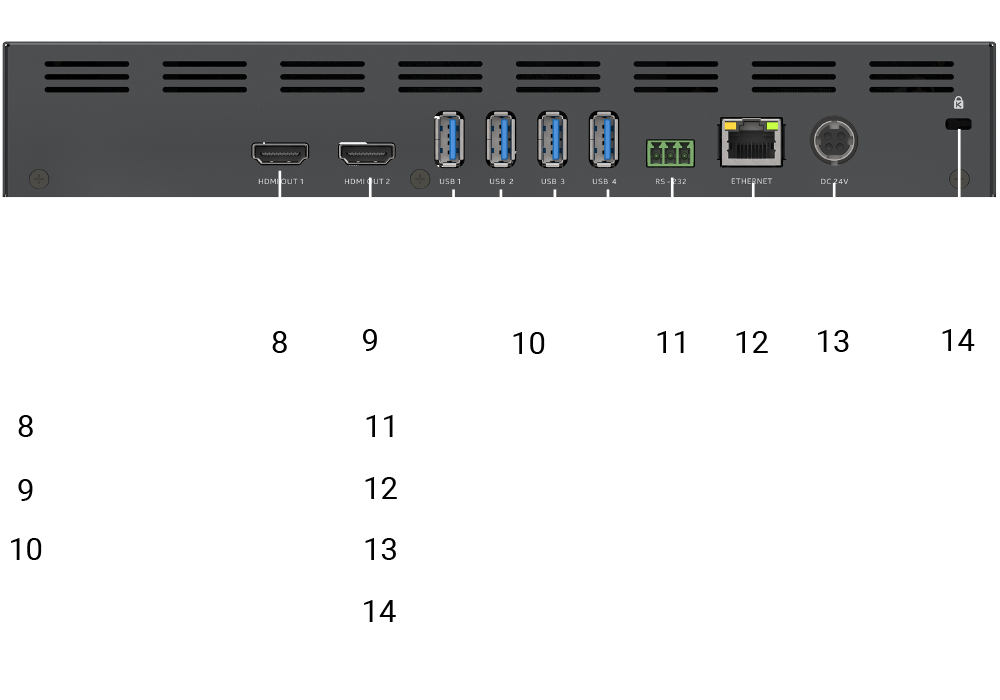

Back
| Host | |
|---|---|
| Input 1 | USB Type-C x 1 (PD Charging, 100W Max.) |
| Input 2 | USB Type-C x 1 |
| Input 3 | USB Type-B x 1 HDMI x 1 |
| Input 4 | USB Type-B x 1 HDMI x 1 |
| USB-C Charging | Yes |
| General | |
|---|---|
| Power Requirement | AC 100 - 240V to DC 24V/7.5A |
| Power Consumption | 150W |
| Powering | External 180W Power Supply |
| Dimensions (W x H x D) | 270.0 x 42.4 x 175.0 mm |
| Net Weight | 1.34 (±0.1) Kg |
| Security | Kensington Slot |
| Operating Conditions | Temperature: 0 °C to +45 °C; Humidity: 20% to 80% |
| Storage Conditions | Temperature: -20 °C to +60 °C; Humidity: 20% to 95% |
| Installation Methods | Rack Mounted, Under the Table, Inside the Podium, Behind the Display |
| USB Devices | |
|---|---|
| Connections | USB Type-A x 4 |
| USB Pass-Through | Yes |
| HDMI Display Outputs | |
| Output | 2 |
| HDMI Display Output Modes | 2 |
| Audio HDMI | Yes |
| Video | |
| Resolution | Up to 4K Ultra HD |
| Signal Type | DP Alt Mode, HDMI 2.0 |
| HDMI CEC | Yes |
| Color Space | RGB, YCbCr |
| Audio | |
| Transmit Mode | Audio Pass-Through from Input to Output |
| Format | HDMI 2.0 |
| Control Interfaces | |
| Ethernet | 1 |
| RS-232 | 1 |
| Touch Control Panel | Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App |
| LED Indicators | |
|---|---|
| Power/Status LED | Orange: Standby Green: Operating Green (Flashing): Firmware Upgrading |
| USB Type-C Charging/Status LED | Green: Charging |
| Input 1/2/3/4 | Green: Connected |
| Output 1/2 | Green: Connected |
| Interfaces | |
| USB Type -A | 4 |
| USB Type -B | 2 |
| USB Type -C | 2 |
| HDMI In | 2 |
| HDMI Out | 2 |
| RJ-45 | 1 |
| RS-232 | 1 |
| Power Input | 1 |
| Button | 2 (Power, Reset) |
| Warranty | 3 Years |
|---|---|
| Package Contents | HUB30, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 17), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide |
| Optional Accessories | AVer CP10 G2 Collaboration Touch Panel |
*Specifications subject to change without notice.
