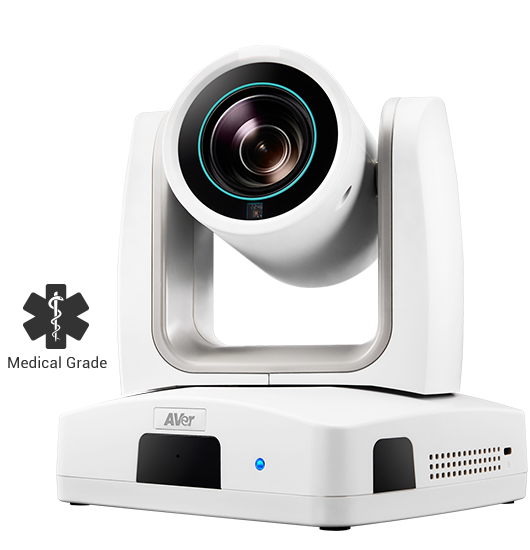

The Camera For Smart Patient Monitoring

The AVer MD120UI is the groundbreaking PTZ camera specifically designed for patient monitoring. Powered by advanced AI technologies, monitoring patients has never been easier, allowing healthcare providers to stay attentive to patient needs at scale. Featuring 20X optical zoom & 4K imaging capabilities along with IR night view function provide crystal-clear visual 24-hour patient monitoring with no blind spots.

cam

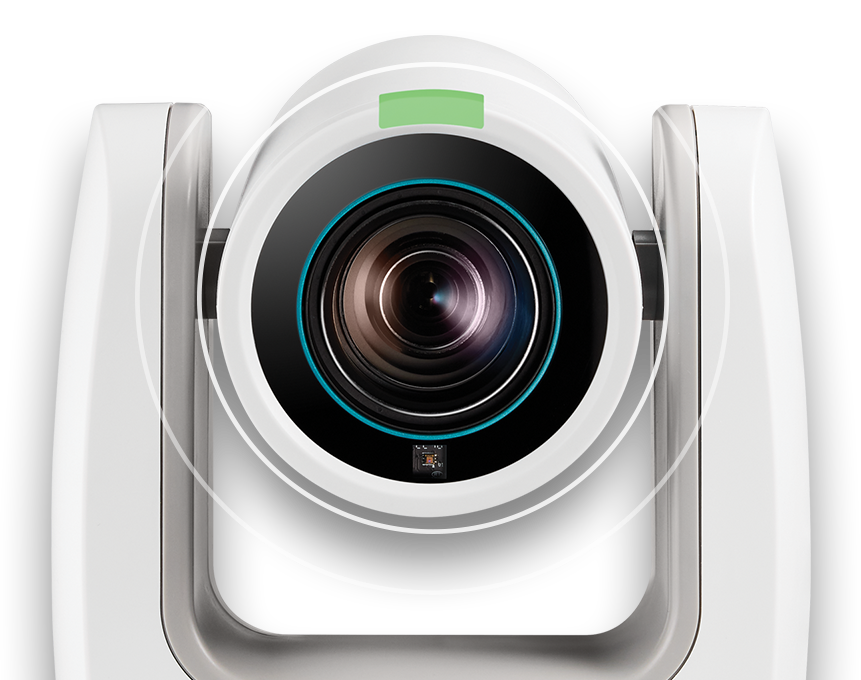

Capture All Details

Featuring 20X optical zoom, 4K resolution, superior autofocus and zoom speed, the MD120UI can capture even the smallest of details. Make precise assessments efficiently with the help of up to 256 preset points provided by the camera.

AI

Powered By AI

State-of-the-art AI algorithms facilitate the automatic detection of a patient’s body contour and capture specific areas of interest on patients, such as face and eyes (AI Facial/Eyes Tracking). The MD120UI can also automatically detect abnormal events in the ward. If a patient falls within the camera's field of view, it triggers an alert to notify nursing station personnel. By utilizing the AI modes, medical professionals can simplify monitoring patients and take necessary precautions with increased efficiency.

Your Privacy Matters

In any healthcare sitting, it is crucial to respect patients' trust and stay compliant to privacy laws. By activating the MD120UI’s Privacy Mode, the transmission of video and audio data can be stopped, ensuring that no information leaves the ward. Rest assured that your patients’ privacy is protected.

Built-in Microphone for Better Real-time Monitoring

Embedded microphones can transmit all sounds in the patient room to the nursing station, alerting medical staff of real-time, crucial information for proper intervention and offering more possibilities for enhancing virtual care settings.

Infrared Night Vision

Infrared Night Vision Function

The Infrared Night Vision function makes 24/7 patient monitoring possible. Healthcare providers can monitor patients around the clock without disturbing patient’s sleep or compromising their own safety, providing secure and efficient patient care in dark room conditions.

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

AVerCare

Specifications

Front
Front
Back
Back

Camera

Image sensor Effective Picture Elements Output resolution
1/2.8” Exmor CMOS 8 megapixels Resolutions: 4K / 1080p / 720p
Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
Minimum Illumination S/N Ratio Gain
0.5 lux (50 IRE, F1.6, Max. AGC, 1/30) ≥ 50 dB Auto, Manual
Shutter Speed Exposure Control White Balance
1/1 to 1/10,000 sec Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR Auto, Manual
Optical Zoom Digital Zoom Viewing Angles
20X 1X DFOV: 69.2° (Wide) to 4.1° (Tele)
HFOV: 62.3° (Wide) to 3.6° (Tele)
VFOV: 37.7° (Wide) to 2.1° (Tele)
Focal Length Aperture (Iris) Minimum Working Distance
f = 4.5 mm (Wide) to 90 mm (Tele) F = 1.8 (Wide) to 4.7 (Tele) 0.1 m (Wide), 1.2 m (Tele)
Pan/Tilt Angles Pan/Tilt Speed (Manual) Preset Speed
Pan: ±170°, Tilt: +90° / -30° Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec Pan: 200° / sec, Tilt: 200° / sec
Preset Postition Camera Control - Interfaces Camera Control - Protocols
10 (IR), 256 (RS-232 / RS-422 / IP) RS-232 / RS-422 / Ethernet VISCA (RS-232 / RS-422 / IP), CGI (IP)
Image Processing Power Frequency
Mirror, Flip, Freeze, WDR, BLC 50 Hz, 60 Hz

AI Function

Mode
Eye Tracking

Privacy

Protection Mode
Privacy Mode, Privacy Indicator

Audio

Channels Codec Built-in Microphone
2ch Stereo AAC-LC (48K) 1 (Omni-Directional)

Interface

Video Outputs Audio Outputs Audio Inputs
HDMI, IP, USB HDMI, IP, USB N/A

Web UI

Live Video Preview Camera PTZ Control Camera / Image
Yes Exposure, White Balance, Picture N/A
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS

General

Power Requirement Power Consumption PoE
12V 24W PoE+ (IEEE802.3at)
Dimensions (W x H x D) Net Weight Housing Material
180 x145 x 183.5 mm 1.7 ( ± 0.1 ) kg Anti-UV
Application IR Night Vision Security
Indoor Yes Kensington Slot
IR Remote Control Remote Control Operating Conditions
Yes Infrared Temperature: 0 °C to +40 °C ; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

Resolution Network Video Compress Formats Maximum Frame Rate
4K 60fps H.264, H.265, MJPEG 4K 60fps
Bit-Rate Control Modes Range of Bit-Rate Network Interface
VBR, CBR 512Kbps to 64Mbps 10 / 100 / 1000 Base-T
Multi-Stream Capability Network Protocols
2 (RTSP / Web Page), 4K 60fps (max.) IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP

USB

Connector Video Format Maximum Video
USB 3.0 (Type-B) MJPEG 2160p
USB Video Class (UVC) USB Audio Class (UAC)
UVC 1.1 UAC 1.0

Software Tools

IP Search and Configuration Tool PTZ Management
AVer ViewCare
PTZ Control Panel
Support Windows® 7 or later Support Windows® 7 or later Supports iOS & iPadOS® 11 or later
Camera Setting Tool
Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

Camera Accessories
3 Year 1 Year

Package Contents

Camera, Drilling Paper, Ceiling Mount Bracket, Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)

Optional Accessories

AVer CL01 PTZ Camera Controller, L-Type Wall Mount

Ordering info

Part number
PAMD120UI

*Specifications may vary depending on location and are subject to change without notice.

Package contents

  • Camera
    Camera
  • Drilling paper
    Drilling Paper
  • Quick Guide
    Quick Guide
  • Cable Fixing Plate
    Cable Fixing Plate
  • Power Adapter & Power Cord
    Power Adapter & Power Cord
  • M3 x 6mm Screw
    M3 x 6mm Screw (x3)
  • M2 x 4mm Screw
    M2 x 4mm Screw (x3)
  • 1/4
    1/4"-20 L=6.5mm Screw (x2)
  • Remote Control
    Remote Control
  • Type-A to Type-B Cable
    Type-A to Type-B Cable
  • Ceiling Mount Bracket
    Ceiling Mount Bracket (x2)

Optional accessories

  • Camera Controller
    CL01 Camera Controller
    SKU: PTCAMCTRL
  • Wall Mount Bracket
    Wall Mount Bracket (Black)
    SKU: COMSVCMNT Install Guide
  • Wall Mount Bracket
    Wall Mount Bracket (White)
    SKU: PTMLTWM02 Install Guide
  • DIN8 to D-Sub9 Cable
    DIN8 to D-Sub9 Cable
    SKU: PTDIN8PT1
