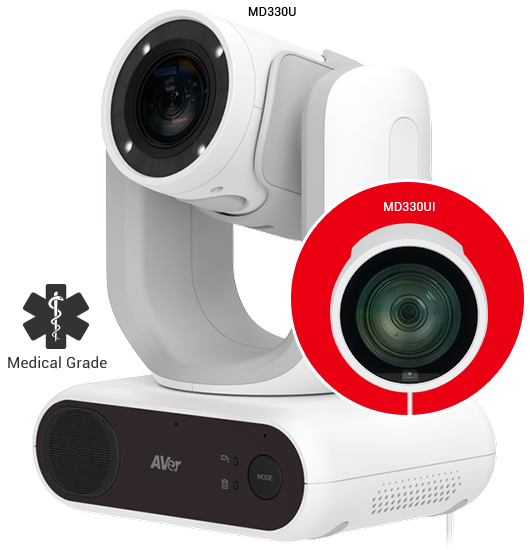

30X Optical Zoom
Handheld Camera Head
One-click Pan-Tilt
One-button
IR for Night View
Medical
30X Optical Zoom, High Resolution & Wide Pan-Tilt Angles
The PTZ Camera clearly captures and shares vital signs & statistics with medical professionals
Regular Mode
- See patients and environments altogether in a broad view
- Pan, tilt and zoom to look into details
- 30X optical zoom
- Up to 4K output resolution
- One-click to control PTZ functions
- Great tilt capability to take as much as patient's body
- Built-in audio system with AI noise reduction technology
- Rapid speed of focus

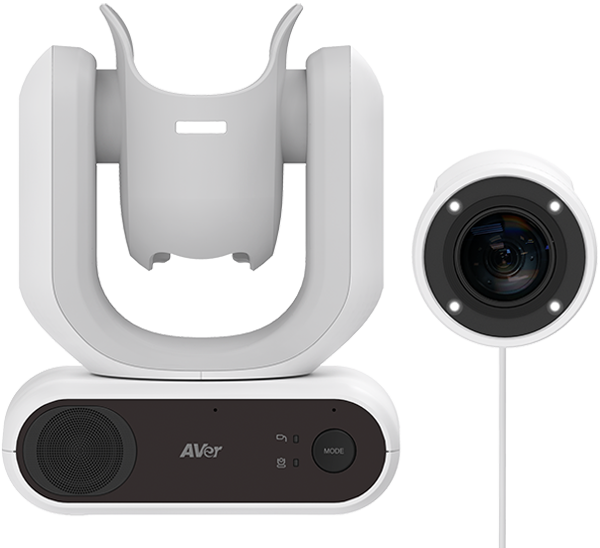

Detached Mode
- Check wound areas that cannot be seen in regular mode
- Get closer images
- Overcome the limitation of remotely control through the internet
- Different viewing angles
- Turn into handheld camera in 1 second
- See details in short working distance (1cm @1X)
- Auto focus function
- One-click photo shooting with high resolution image
- Place the camera head wherever you want
- Support IR LED module for night view
Enjoy the unprecedented quality and support
AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!
* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.
Specifications
Front
Back
Head
Camera
| Image sensor | Effective Picture Elements | Output resolution |
|---|---|---|
| 1/2.8” Exmor CMOS | 8 megapixels | 4K/30 (IP / UVC), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50 |
| Minimum Illumination | S/N Ratio | Gain |
| 0.7 lux (IRE50, F1.6, 30fps) | ≥ 50 dB | Auto, Manual |
| Shutter Speed | Exposure Control | White Balance |
| 1/1 to 1/10,000 sec | Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR | Auto, Manual |
| Optical Zoom | Digital Zoom | Viewing Angles |
| 30X | 2X | DFOV: 72.9° (Wide) to 2.64° (Tele) HFOV: 65.1° (Wide) to 2.34° (Tele) VFOV: 38.4° (Wide) to 1.36° (Tele |
| Focal Length | Aperture (Iris) | Minimum Working Distance |
| f = 4.3 mm (Wide) to 129 mm (Tele) | F = 1.6 (Wide) to 4.7 (Tele) | 0.01 m (Wide), 1.2 m (Tele) |
| Pan/Tilt Angles | Pan/Tilt Speed (Manual) | Preset Speed |
| Pan: ±170°, Tilt: +90° / -35° | Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec | Pan: 200° / sec, Tilt: 200° / sec |
| Preset Postition | Camera Control - Protocols | Image Processing |
| 10 (IR), 256 (RS-232 / IP) | VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP) | Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC |
| Power Frequency | Included accessories | |
| 50 Hz, 60 Hz | Remote Control, Power Adapter, Power Cord, Screws(x2), USB Cable, Quick Guide |
Audio
| Embedded Speaker | Microphone | AI Noise Reduction |
|---|---|---|
| Yes | Yes, Array Microphone | Yes |
Interface
| Video Outputs | Audio Outputs | |
|---|---|---|
| HDMI, IP, USB | HDMI, IP, USB |
General
| Power Requirement | Power Consumption | Dimensions (W x H x D) |
|---|---|---|
| AC 100 - 240V to DC 12V/3.34A | 36W | 168.0 x 203.0 x 124.0 mm |
| Net Weight | Application | Tally Lamp |
| 1.65kg | Indoor | N/A |
| Security | Remote Control | Operating Conditions |
| Kensington Slot | Infrared | Temperature: 0 °C to +35 °C; Humidity: 20% to 80% |
| Storage Conditions | ||
| Temperature: -20 °C to +60 °C; Humidity: 20% to 95% |
IP Streaming
| Resolution | Network Video Compress Formats | Maximum Frame Rate |
|---|---|---|
| 4K 30fps | H.264, H.265 | 4K 30fps |
| Network Interface | Multi-Stream Capability | Network Protocols |
| 10 / 100 / 1000 Base-T | 2 (RTSP / Web Page), 4K 30fps (max.) | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
USB
| Connector | Video Format | Audio Format |
|---|---|---|
| USB 3.0 | MJPEG, YUY2 | PCM |
| USB Video Class (UVC) | USB Audio Class (UAC) | |
| UVC 1.1 | UAC 1.0 |
Software Tools
| IP Search and Configuration Tool | PTZ Monitoring and Management | |
|---|---|---|
| Support Windows® 7 or later | AVer PTZ Management |
Warranty
| Camera | Accessories | |
|---|---|---|
| 3 Year | 1 Year |
Ordering info
| Part number | ||
|---|---|---|
| PATMD330U (MD330U - Camera with Built in LED) PAMD330UI (MD330UI - Camera with Built in Infrared Light) |
*Specifications subject to change without notice.
Package contents
Camera
USB 3.0 Type-B to Type-A Cable (1.5m)
QR Code Card
1/4"-20L=7.5mm Screw (x2)
Power Adapter & Power Cord
Remote Control
Optional accessories
CL01 Camera Controller
SKU: PTCAMCTRL
Ceiling Mount Bracket (White)
SKU: PTZMDCM01
Wall Mount Bracket (Black)
SKU: COMSVCMNT Install Guide-
Wall Mount Bracket (White)
SKU: PTMLTWM02 Install Guide
RS-232 Adapter (3.5mm to D-Sub9 Cable)
*Purchased through Open Market
