• SRT Ready
  • TAA NDAA
  • Zoom Certified
  • Taiwan Excellence 2019
  • Clickshare
  • Intel UNITE
  • NDI | HX Upgradable

Capture your events in true-to-life video quality

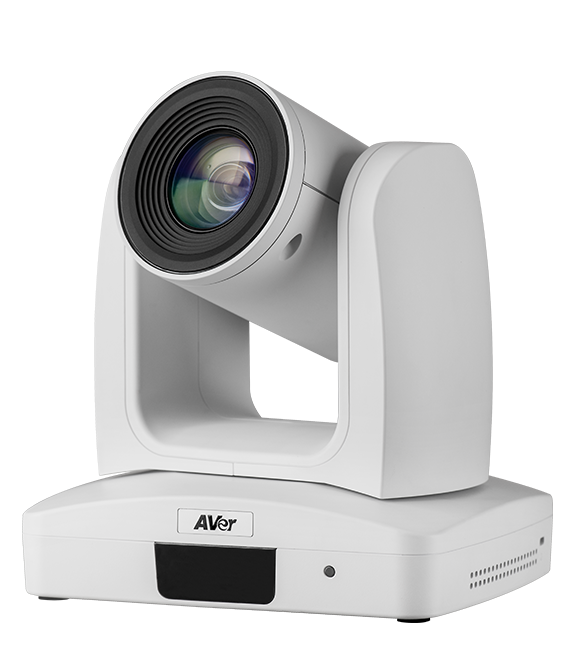

The AVer PTZ310W Professional Live Streaming PTZ Camera provides the superior video quality and versatility you need to record and share events around the world! Available in white to suit your hospital, classroom, or wedding atmospheres.

Upgrade your AVer camera with NDI®|HX here.

Seamless tracking between your preset zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310 across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Seamless Tracking
Tracking Stage

Fit your FOV in seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Fit your FOV target

Highly versatile camera motion control

The PTZ310W advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ310W is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Prepare for any angle with outstanding preset location functionality

Preset the PTZ310W with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Up to 10 Presets
1
2
3

Voice tracking

With the aid of PTZ Link and select microphones, you can easily turn AVer PTZ camera to a voice tracking camera through setting preset points. Accomplish all this without having to hire expensive programmers!

Voice Tracking

Softwares Compatible software

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 3 year advance replacement warranty with free RMA shipping and 24 hour turnaround time. We strive to provide industry leading product quality, service and support so you’re always up and running!

AVerCare

Specifications

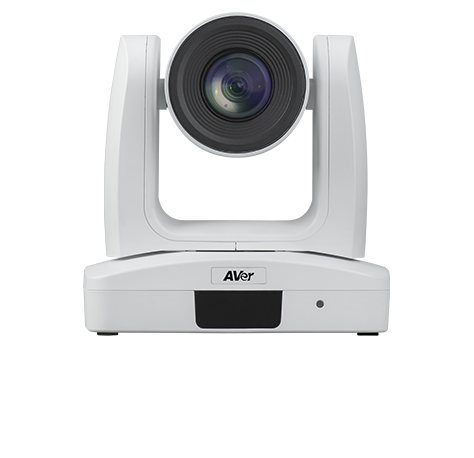

Front
Front
Back
Back

Camera

Image sensor Effective picture elements Output resolution
1/2.8” 1080p 60fps Exmor CMOS Approx. 2.1 megapixels Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50
Minimum illumination S/N ratio Gain
IRE50 0.47 lux (F1.6, 30fps) > 50dB Auto / Manual
TV line Shutter speed Exposure control
800 (Center/Wide) 1/1s to 1/32,000s Auto, Manual, Priority AE(Shutter, IRIS), BLC
White balance Optical zoom Digital zoom
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) 12X 12X
Horizontal viewing angle Focal length Aperture (Iris)
72.1° (Wide) ~ 6.6° (Tele) f = 3.9mm (Wide) ~ 46.8mm (Tele) F = 1.6 (Wide) ~ 2.8 (Tele)
Minimum working distance Pan/Tilt angle Pan/Tilt speed (Manual)
0.3m (Wide), 1.5m (Tele) Pan: +-170°, Tilt : +90°/-30° Pan: 0.1 ~ 100° /Sec, Tilt : 0.1 ~ 100° /Sec
Preset speed Preset position Camera control - interface
Pan: 200° /Sec, Tilt : 200° /Sec 10 (IR), 255 (RS232) RS232 (DIN8) / RS422 (RJ45)
Camera control - protocol Image processing Power frequency
VISCA (RS232/RS422/IP), CGI (IP) Noise Reduction (2/3D), Flip, Mirror Auto / 50Hz / 60Hz
Included accessories
IR Remote Control, 12V/5A Power Adapter, DB9 to DIN6/DIN8 Adapter, Quick Guide, HDMI Cable

Audio

Audio - channel Audio - codec Audio - sample rate
2ch (stereo) AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) 48 / 44.1 / 32 / 24 / 16 / 8Khz

Interface

Video output Audio output Audio input
3G-SDI, HDMI, IP, USB 3G-SDI, HDMI, IP, USB MIC / Line-in

General

Power requirement PoE Operating condition
AC100V-AC240V to DC12V/5A POE+ (IEEE 802.3at), Class 4 Temperature : 0°C ~ +40°C ; Humidity : 20% ~ 80%
Storage condition Dimensions Weight
Temperature: -20°C ~ +60°C ; Humidity : 20% ~ 95% L = 180mm, W = 145mm, H = 183.5mm 1.741kg
Application Security Remote control
Indoor Kensington Slot Infrared
Accessory
Remote control, 12V/5A power adapter

IP streaming

Resolution Network video compress format Maximum frame rate
1920x1080, 1280x720, 960x540, 640x480 H.264 (High Profle), MJPEG H.264:60fps (1920x1080), MJPEG:30fps (1920x1080)
Bit-rate control mode Range of bit-rate setting Network interface
VBR / CBR (Selectable) 512Kbps ~ 32Mbps 10 / 100 / 1000Base-T
Multi-stream capability Network protocol NDI Protocol
2 IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP Not upgradable to NDI
SRT protocol NDI Protocol
Yes Upgradable (Click here)

USB

Connector Video format Maximum video resolution
Micro-USB 2.0 YUV, MJPEG Up to 1080p
USB video class USB audio class
UVC1.1 UAC1.0

WebUI

Live video preview Camera PTZ control Camera/Image adjustment
Yes Pan / Tilt / Zoom / Focus / Preset Control Exposure / WhiteBalance / Picture
Network configuration
DHCP / IP Addr / Gateway / Netmask / DNS

Software tools

AVer PTZ Management
AVer CaptureShare
PTZ Control Panel
PTZ Link
OBS Plug in

Warranty

Camera Accessories
3 Years with AVerCare 1 Year

Ordering info

Part number
PAPTZ310W (White Color)

*Specifications subject to change without notice.

Package contents

  • Camera
    Camera
  • HDMI cable
    HDMI Cable
  • Quick Guide
    Quick Guide
  • Cable Fixing Plate
    Cable Fixing Plate
  • M2 x 4mm Screw
    M2 x 4mm Screw (x4)
  • Power Adapter & Power Cord
    Power Adapter & Power Cord
  • 6.5mm Screw
    6.5mm Screw
  • Remote Control
    Remote Control
  • DIN8 to D-Sub9 Cable
    DIN8 to D-Sub9 Cable
    SKU: PTDIN8PT1
  • RS-232 In/Out Y Cable
    RS-232 In/Out Y Cable
    SKU: PTRSINOUT
  • Cable Tie (x5)
    Cable Tie (x5)
  • Battery
    Battery

Optional accessories
