5
Mega Pixel30
FPS8x
Digital Zoom
Super simple setup
The U50 USB document camera requires only one cable for power and connectivy for the quickest set up of any document camera. Made simple for everyday use.

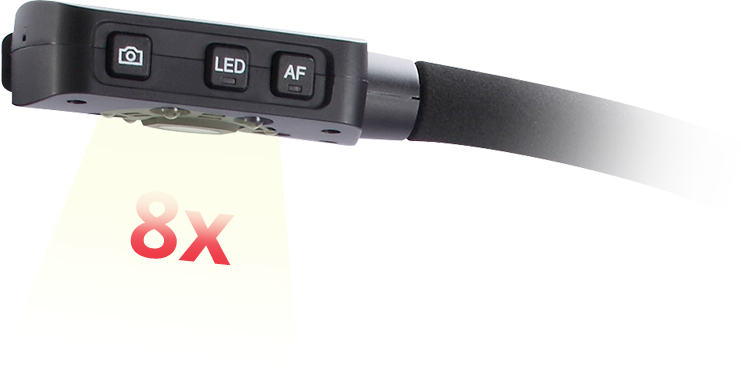

Clear quality display
Capture every student's attention with the U50 USB document camera's 5MP and 8x Zoom quality picture. Easily magnify any detail in your lesson.
Picture perfect
Who says geography or math can't be fun? Use the U50 USB document camera Take a picture or capture video at 30fps, 1080p (HD) to jazz up all your learning visuals.

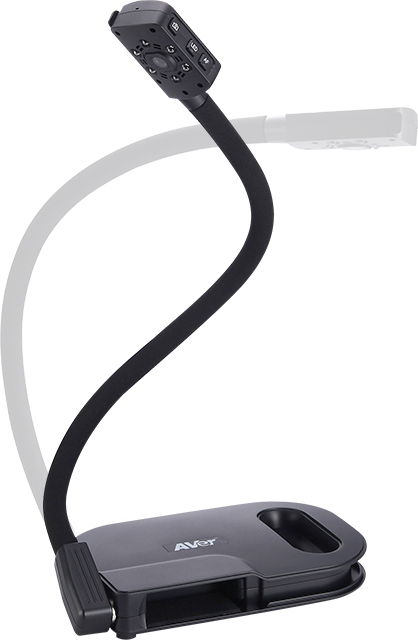

Flexible design
Smart design for smart use and smart storage; bend it at any angle to teach or to stow away in the tightest space. The U50 USB document camera is light, portable and easy to use.

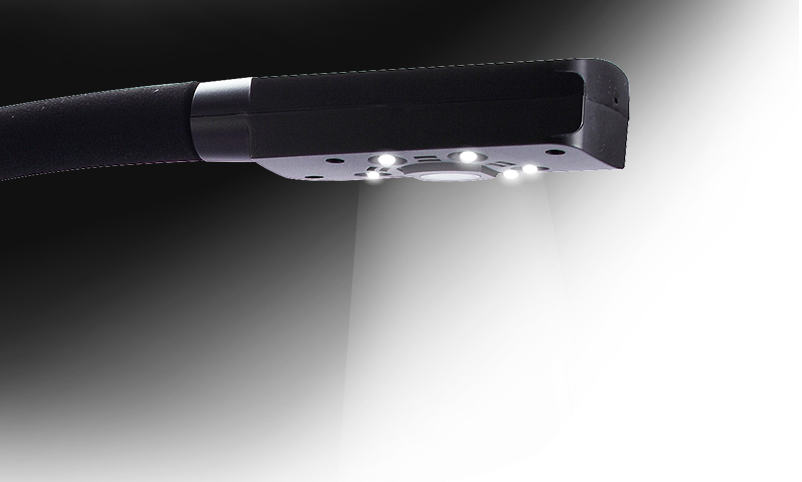

Built-in LED lights
Every teacher needs a little bit of light when teaching in the dark. The U50 USB document camera has a built-in LED light to illuminate any object under the camera.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
Specifications
| Sensor1/4" CMOS | Pixel count5 megapixels |
|---|---|
| Zooming8X digital zoom | Shooting areaMax. 19.02" x 14.25" |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/4" CMOS | Pixel count | 5 megapixels | TV lines | 1000 (Center) |
| Frame rate | 30 fps (max.) | White balance | Auto / Manual | Exposure | Auto / Manual |
| USB output | 2592x1944, 1920x1200, 1920x1080, 1280x720, 1280x960, 1024x768 | ||||
| Optics | |||||
|---|---|---|---|---|---|
| Focus | Auto | Shooting area | Max. 19.02" x 14.25" (483mm x 362mm @ max height) *at 4:3, shooting area 483*362 mm *at 16:9, shooting area 483*272 mm *at 1080P, shooting area 360*203 mm | Zooming | 8X digital zoom |
| Button functions | |||||
|---|---|---|---|---|---|
| Snapshot | Take a snapshot onto AVer Software | LED | Turns on the LED light | AF | Initiates the auto focus |
| Compatibility | |||||
|---|---|---|---|---|---|
| Operating systems | Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.10 or above (Intel based), Chrome OS 29 or above | AVer software | AVer A+ software suite (Sphere 2, PowerPoint plug-in, Flash-plug-in), Sphere Lite (for Chromebook) | Interactive whiteboard compatibility | Yes with AVerVision Flash plug-in *certain limitations apply |
| Power | |||||
|---|---|---|---|---|---|
| Power source | Powered from USB connection | Consumption | 2.3 Watts (lamp off); 3.4 Watts (lamp on) | ||
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp type | LED light | ||||
| Input/Output connections | |||||
|---|---|---|---|---|---|
| USB | Mini-USB (functions as PC connectivity and Power) | MIC | Built in | DC 5V input | No longer offered for U50 shipped after Jan 1st 2018 |
| Dimension | |||||
|---|---|---|---|---|---|
| Operating | 15.35" x 9.76" x 17.62" 390mm x 248mm x 447.5mm (+/-2mm include rubber foot) | Folded | 10.19" x 6.42" x 1.53" 259mm x 163mm x 38.79mm (+/-2mm include rubber foot) | Weight | 3.3 lbs (1.5kg) |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") | Carrying bag | Part number: VISIOCPCC | ||
| Package contents | |||||
|---|---|---|---|---|---|
| U50 | |||||
| 3' USB cable (Mini type) | |||||
| Software CD | |||||
| Warranty card | |||||
| Quick guide |
| Others | |||||
|---|---|---|---|---|---|
| Ordering Info | SKU: VISIONU50 | ||||
