13
Mega Pixel30
FPS16x
Digital Zoom
Don't miss a pixel
The U70+, with its built in 13MP camera with 16x digital zoom, delivers best in class pixel performance capturing full resolution that enables vibrant, ultra-clear images.
A whole new level of speed
Add USB power and you've got a USB document camera that super speeds everything to and from its connected device providing a lag-free streaming experience.

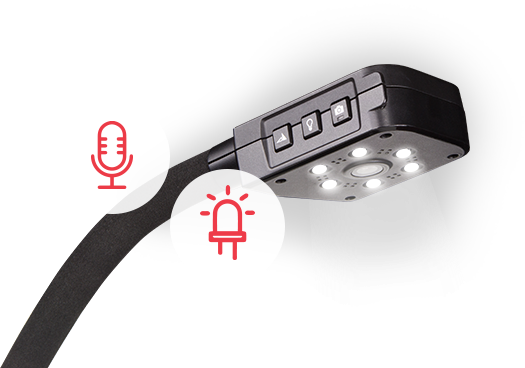

Smart tools are handy tools
Whether you're doing a live demonstration or livestreaming, leverage U70+'s embedded built-in LED and microphone to spotlight your subject and listen in on the learning experience.
Integrate to collaborate
Use U70+'s free Sphere2 & ClassSend software to inspire innovative lesson creation and build classroom engagement. It's the bridge that connects you and your document camera to your students.
The AVer Document Camera has been the best teaching tool I have ever used. I have no regrets about getting the document camera instead of an interactive white board. The document camera has so many more functions and uses than I ever imagined.Broadneck Elementary School | Read Case Studies
With a compact and robust design and free software for screencasting, manipulating and sharing video, the AVer F17HD is one of the best HD cameras available.Fractus Learning | Read Case Studies
Specifications
| Sensor1/3.06" CMOS | Pixel count13 megapixels |
|---|---|
| Zooming16X digital zoom | Shooting areaMax. 20.8" x 15.5" |
| Image | |||||
|---|---|---|---|---|---|
| Sensor | 1/3.06" CMOS | Pixel count | 13 megapixels | TV lines | 1400 (8MP) / 1100 (2MP) / 800 (SXGA/720P/XGA) |
| Frame rate | True 4K @ 30fps / True HD @ 60fps | White balance | Auto / Manual | Exposure | Auto / Manual |
| USB output | 4164x3112, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 640x480 | ||||
| Optics | |||||
|---|---|---|---|---|---|
| Focus | Auto/Manual | Shooting area | Max (Large than A3 420*297) 4:3 = 530x396 mm (+/- 10mm) @410mm high/ 20.8x15.5 inch 16:9=545x305 mm (+/- 10mm) @440mm high/ 21.4x12.0 inch 5:4=498x397 mm (+/- 10mm) @410mm high/19.6x15.6 inch Min 4:3 = 130x96 mm (+/- 10mm) @100mm high/ 5.1x3.7 inch 16:9=123x69 mm (+/- 10mm) @100mm high/ 4.8x2.7 inch 5:4=120x96 mm (+/- 10mm) @100mm high/ 4.7x3.7 inch |
||
| Zooming | 16X digital zoom | ||||
** frame rate could vary depending on computer hardware speed
| Button functions | |||||
|---|---|---|---|---|---|
| Snapshot | Take a snapshot onto AVer software | LED | Turns on the LED light | AF | Initiates the auto focus |
| Rotate | Rotate image (via AVer software only) | Zoom in | Digitally zoom into image (via AVer software only) | Zoom out | Digitally zoom out of image (via AVer software only) |
| Compatibility | |||||
|---|---|---|---|---|---|
| Operating systems | Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 10 (32/64 bit), Mac OS X 10.10 or above (Intel based), Chrome OS 29 or above | AVer software | AVer A+ software suite (Sphere 2), Sphere Lite (for Chromebook) | Interactive whiteboard compatibility | Yes with AVerVision Flash plug-in* |
* certain limitations apply
| Power | |||||
|---|---|---|---|---|---|
| Power source | Powered from USB connection | Consumption | 4.0 Watts (lamp on)@USB3.0; 3.3Watts (lamp off)@USB3.0 2.5 Watts (lamp on)@USB2.0; 1.8Watts (lamp off)@USB2.0 | ||
| Lighting | |||||
|---|---|---|---|---|---|
| Lamp type | LED light | ||||
| Input/Output connections | |||||
|---|---|---|---|---|---|
| USB | USB3.0 port (functions as PC connectivity and Power) | MIC | Built in | ||
* USB2.0 compatibility on Mac OS.
| Dimension | |||||
|---|---|---|---|---|---|
| Operating | 9.1" x 12.2" x 18.4" 233mm x 312mm x 468mm (+/-2mm include rubber foot) | Folded | 9.5" x 7.3" x 1.7" 242mm x 187.5mm x 44mm (+/-2mm include rubber foot) | Weight | 1.7kg(+/-0.1kg) (3.74lbs) |
| Optional accessories | |||||
|---|---|---|---|---|---|
| Anti-glare sheet | Part number: PANTIGLA1 (A5 size 8.26" x 5.84") | Carrying bag | Part number: VISIOCPCC | ||
| Package contents | |||||
|---|---|---|---|---|---|
| U70+ | |||||
| 4.92' (1.5m) USB3.0 cable | |||||
| Warranty card | |||||
| Quick guide |
| Others | |||||
|---|---|---|---|---|---|
| Ordering Info | SKU: VISU70PLS | ||||
AVer Advantages
13MP with 16X Digital Zoom
Plug-N-Play
USB 3.0
Free Sphere2 Software
