Capture your events in true-to-life video quality with NDI-HX Connectivity

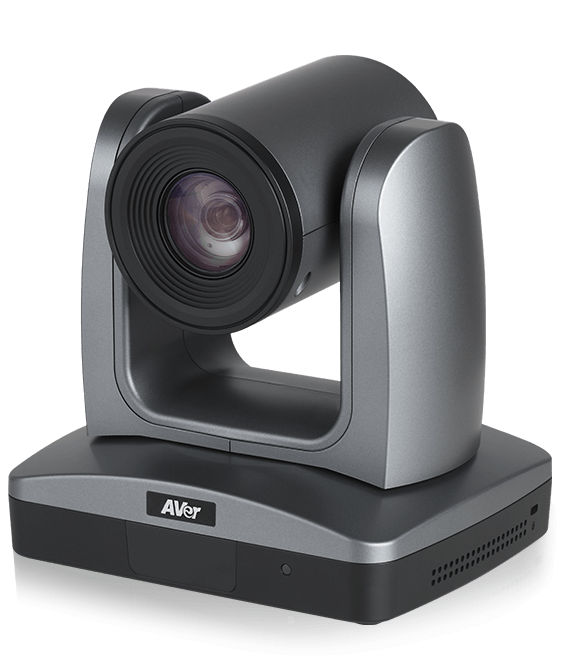

The AVer PTZ330N NDI PTZ Live Streaming Camera is the latest camera with NewTek NDI® 5 integrated. It combines both standard SDI and HDMI connections as well as Ethernet/NDI network connectivity for HD video streaming, recording, and broadcasting. The PTZ330N can output HD video and audio while receiving control signal and power over a single connection. Pan, tilt, zoom, recording settings, and more can also be adjusted remotely over Ethernet. The NDI protocol, NewTek's innovative IP technology, gives you low-latency access to audio and video devices anywhere on your network for various A/V applications.

Seamless tracking between your preset zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330N across all your preset zones. Save effort and time, while providing your video with a huge variety of shooting ranges.

Seamless tracking hanging cam
Seamless tracking stage

Fit your FOV in seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Fit your FOV targets

Highly versatile camera motion control

The PTZ330N advanced Motion Control Settings allow you to preform precise and steady camera movement during recording. Customizable speed controls provide you the ability to change movement speeds to best optimize your recording experience and with a wide shooting range, you will always produce superior video content. Furthermore, the PTZ330N is capable of pan/tilt rotation maneuvers as small as 0.1° per step equipping you with perfectly fluid control when record.

Prepare for any angle with outstanding preset location functionality

Preset the PTZ330N with up to 255 different locations through VISCA via RS232 and RS422 functionality. Always be prepared to change your recording view with its simplified IR remote and the ability to set 10 preprogrammed preset locations for easy manual control of the recording view.
Up to 10 Presets
1
2
3

Voice tracking

With the aid of PTZ Link and select microphones, you can easily turn AVer PTZ camera to a voice tracking camera through setting preset points. Accomplish all this without having to hire expensive programmers!

Voice Tracking

Software Compatible software

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

AVerCare

Specifications

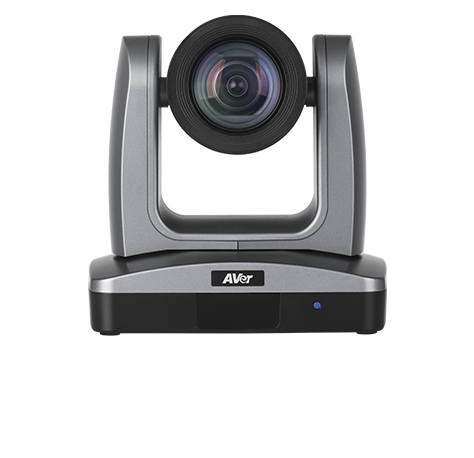

Front
Front
Back
Back

Camera

Image sensor Effective picture elements Output resolution
1/2.8" 1080p 60fps Exmor CMOS Approx. 2.1 megapixels Auto, 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080i/59.94, 1080i/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50
Minimum illumination S/N ratio Gain
0.43 lux (IRE50, F1.6, 30fps) > 50dB Auto/Manual
TV line Shutter speed Exposure control
800 (Corner/Wide) 1/1s to 1/32,000s Auto, Manual, Priority AE( Shutter, IRIS), BLC
White balance Optical zoom Digital zoom
Auto/Indoor/Outdoor/One-push/Manual (2500 - 10000) 30X 12X
Horizontal viewing angle Focal length Aperture (Iris)
67° (Wide) ~ 2.3° (Tele) f = 4.3mm (Wide) ~ 129mm (Tele) F = 1.6 (Wide) ~ 4.7 (Tele)
Minimum working distance Pan/Tilt angle Pan/Tilt speed (Manual)
0.01m (Wide), 1.2m (Tele) Pan: +-170°, Tilt : +90°/-30° Pan: 0.1 ~ 100° /Sec, Tilt : 0.1 ~ 100° /Sec
Preset speed Preset position Camera control - interface
Pan: 200° /Sec, Tilt : 200° /Sec 10 (IR), 255 (RS232) RS232 (DIN8)/RS422 (RJ45)
Camera control - protocol Image processing Power frequency
NDI® 5, VISCA (RS232/RS422/IP), CGI (IP) Noise reduction (2/3D), Flip, Mirror Auto/50Hz/60Hz
Included accessories
IR Remote Control, 12V/5A Power Adapter, DB9 to DIN6/DIN8 Adapter, Quick Guide, HDMI Cable

Audio

Audio - channel Audio - codec Audio - sample rate
2ch (Stereo) AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) 48/44.1/32/24/16/8Khz

Interface

Video output Audio output Audio input
3G-SDI, HDMI, IP, USB 3G-SDI, HDMI, IP, USB MIC/Line-in/3.5mm

General

Power requirement PoE Operating condition
AC100V-AC240V to DC12V/5A POE+ (IEEE 802.3at), Class 4 Temperature : 0°C ~ +40°C ; Humidity : 20% ~ 80%
Storage condition Dimensions Weight
Temperature : -20°C ~ +60°C ; Humidity : 20% ~ 95% L = 180mm, W = 145mm, H = 183.5mm 1.62kg
Application Security Remote control
Indoor Kensington Slot Infrared
Accessory
Remote control, 12V/5A power adapter

IP Streaming

Resolution Network video compress format Maximum frame rate
1920x1080, 1280x720, 960x540, 640x480 H.264 (High Profle), MJPEG H.264:60fps (1920x1080), MJPEG:30fps (1920x1080)
Bit-rate control mode Range of bit-rate setting Network interface
VBR/CBR (Selectable) 512Kbps ~ 32Mbps 10/100/1000Base-T
Multi-stream capability Network protocol SRT protocol
2 NDI® 5, SRT, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP Yes

USB

Connector Video format Maximum video resolution
Micro-USB 2.0 YUV, MJPEG Up to 1080p
USB video class USB audio class
UVC1.1 UAC1.0

WebUI

Live video preview Camera PTZ control Camera/Image adjustment
Yes Pan/Tilt/Zoom/Focus/Preset Control Exposure/WhiteBalance/Picture
Network configuration
DHCP/IP Addr/Gateway/Netmask/DNS

Software tools

AVer PTZ Management
CaptureShare
PTZ Control Panel for iPad
PTZ Link
OBS Plug in

Warranty

Camera Accessories
3 years with AVerCare 1 Year

NDI Streaming

Output Communication
NDI® 5 (over IP interface) NDI

Ordering info

Part Number
PAPTZ330N (Gray color)

*Specifications subject to change without notice.

Package contents

  • Camera
    Camera
  • HDMI cable
    HDMI Cable
  • Quick Guide
    Quick Guide
  • Cable Fixing Plate
    Cable Fixing Plate
  • M2 x 4mm Screw
    M2 x 4mm Screw (x4)
  • Power Adapter & Power Cord
    Power Adapter & Power Cord
  • 6.5mm Screw
    6.5mm Screw
  • Remote Control
    Remote Control
  • DIN8 to D-Sub9 Cable
    DIN8 to D-Sub9 Cable
    SKU: PTDIN8PT1
  • RS-232 In/Out Y Cable
    RS-232 In/Out Y Cable
    SKU: PTRSINOUT
  • Cable Tie (x5)
    Cable Tie (x5)
  • Battery
    Battery

Optional accessories

NDI

About NDI

NDI is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.

*NDI is a registered trademark of NewTek.
