Professional Quality Video For Everyone.

The AVer TR311 AI Auto Tracking opens a new world of streaming video to small training studios and home video producers to classrooms and worship facilities! Featuring12X optical zoom, 2MP camera and full HD resolution, the TR311 has the range and picture quality to produce big-time productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zones so you’re free to present and let the camera do the rest.

With 3G-SDI/HDMI/IP/USB output, PoE+, Visca control, and compatibility with all popular video platforms, you have all you need to connect with ease in any environment. Includes a ceiling mount to keep clear of live audiences below.

Our industry-leading AVerCare warranty program offers 3 years protection and 24-hour replacement to give you total peace of mind.

People tracking

  • Capture every interaction
  • Either track full body or half body
  • Simple click to track and manually follow an additional presenter via remote control or Web UI

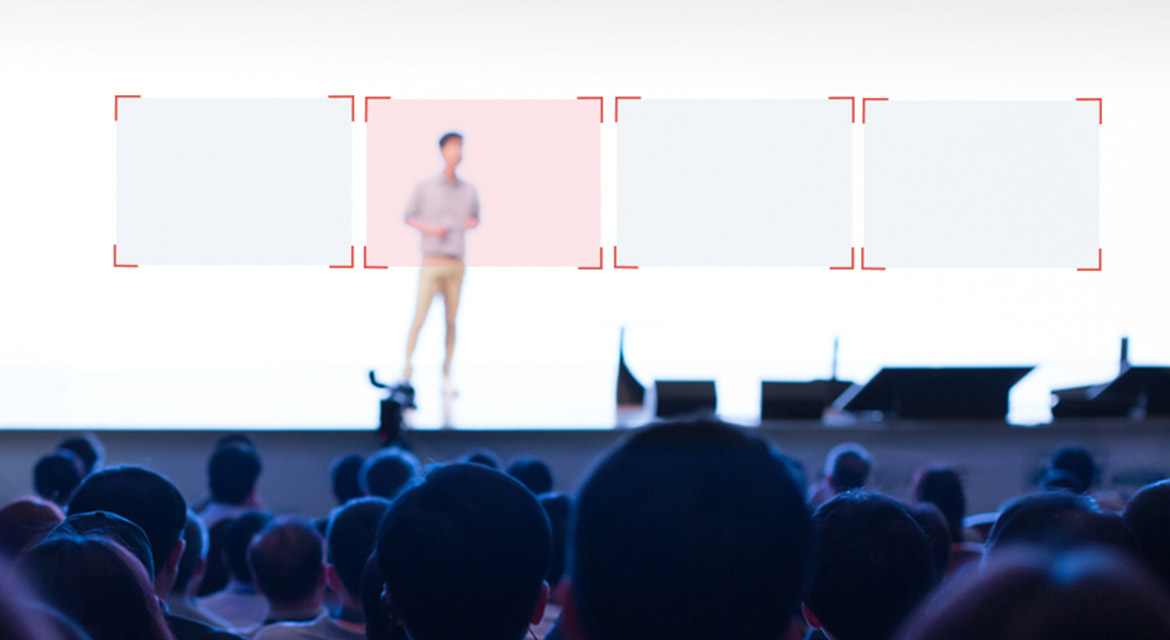

Zone tracking

  • Establish preset zones
  • Create video focused on content
  • Enhance the capture of content on multiple displays

Wide dynamic range

The Wide Dynamic Range (WDR) of the TR311 uses special algorithms to balance dark or bright lighting for one clear image.

WDR WDR
Without WDR
WDR



Without WDR

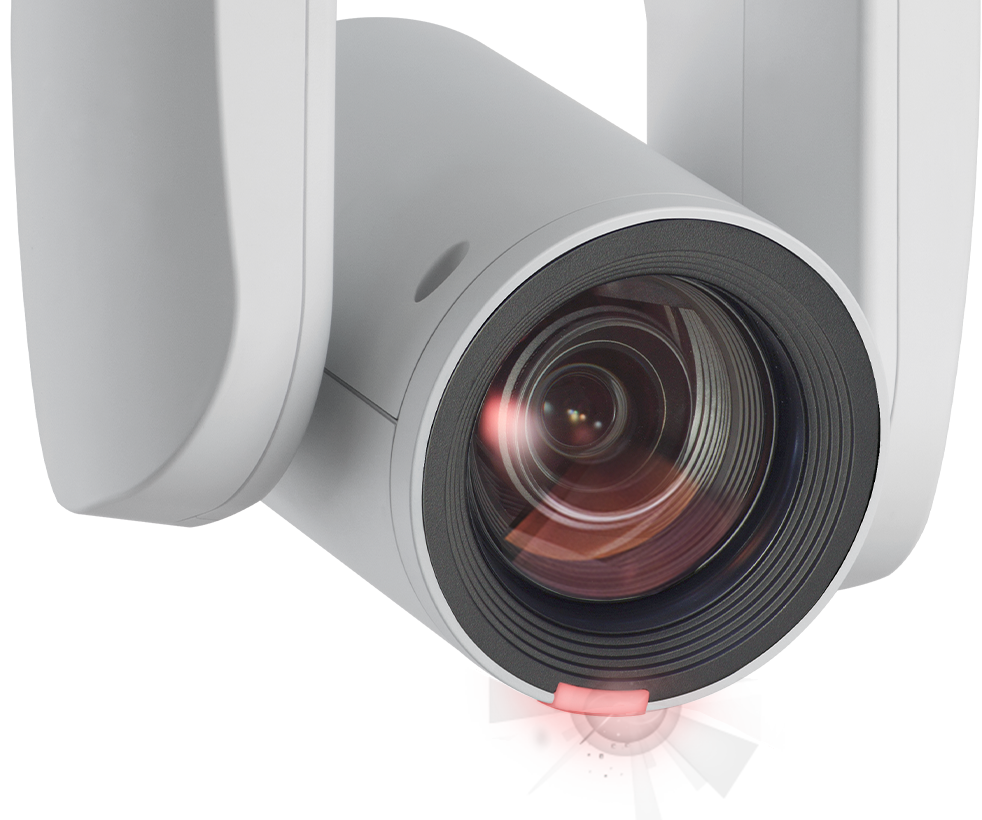

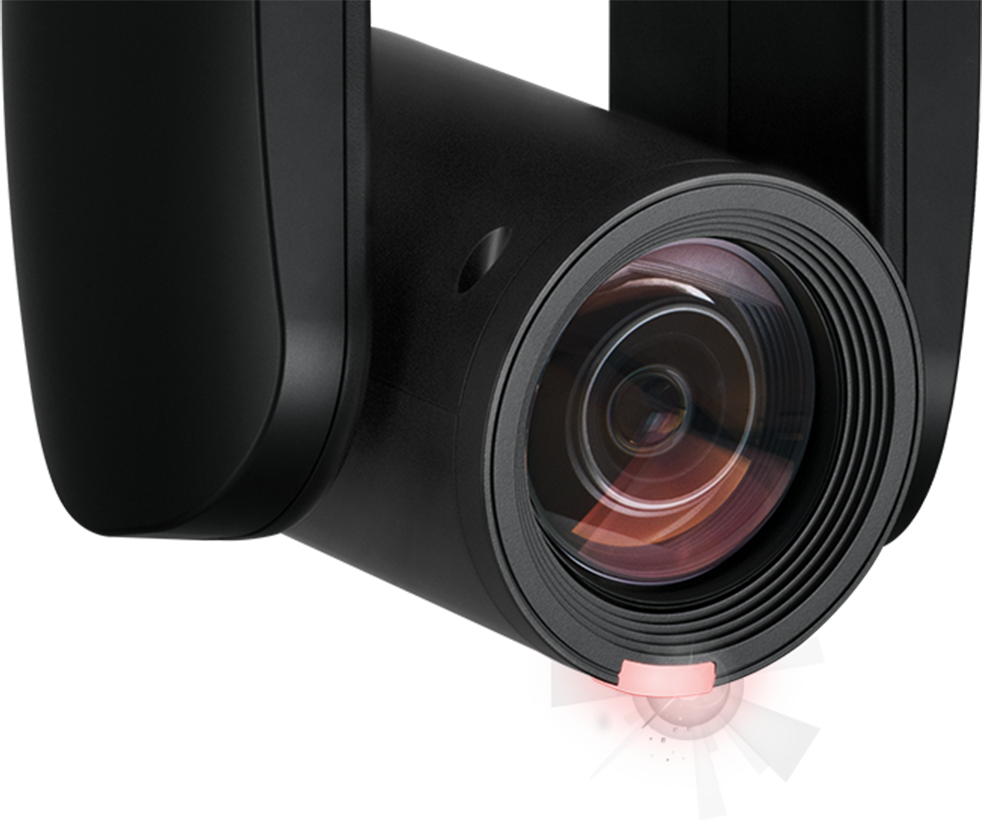

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Compatible software

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control for iPad have you covered. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 3 year advance replacement warranty with free RMA shipping and 24 hour turnaround time. We strive to provide industry leading product quality, service and support so you’re always up and running!

AVerCare

Pro evaluation program

Buying a professional video system is no small task. Let us make evaluating our Auto Tracking and PTZ cameras a little easier. Our no risk 30 day Pro Evaluation Program allows you to try out any of our Pro AV cameras before you buy. If you wish to purchase we will work with a partner to fulfill your order. If not, we provide return shipping at no cost.

Send inquiry

Specifications

Front
Front

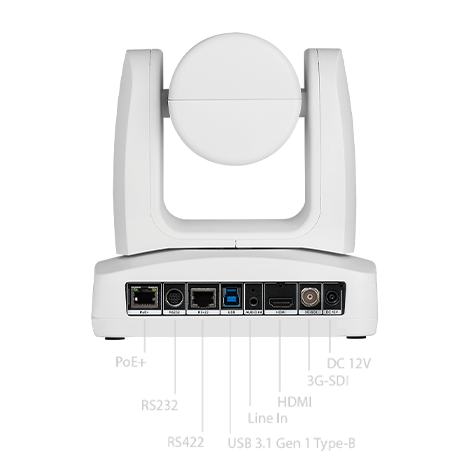

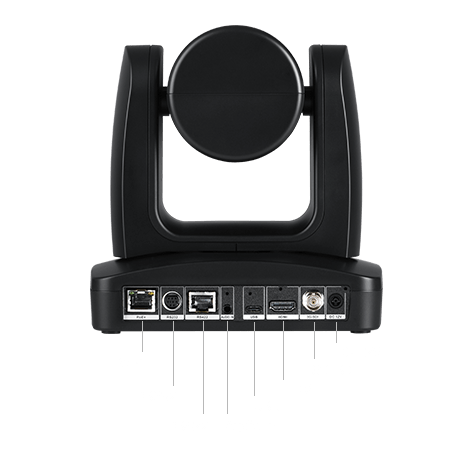

Back
Back

Camera

Image sensor Pixel Output resolution
1/2.8" CMOS 2 megapixels Resolution: 1080p/720p
Frame Rate : 60/59.94/50/30/29.97/25
TV line Focal length Iris
900 (center/wide) f = 3.9 ~ 46.8mm F = 1.6 (Wide) ~ 2.8 (Tele)
Optical zoom Digital zoom Total zoom
12X 12X 144X
D FOV H FOV V FOV
78°(wide)~7°(Tele) 70°(wide)~6°(Tele) 42°(wide)~3°(Tele)
Minimum illumination Minimum working distance Focus
0.4 lx (50 IRE, F1.6, Max. AGC, 1/30) Wide 0.3m, Tele 1.5m Auto/Manual/One Push
White balance Gain Shutter speed
Auto /Manual Auto /Manual 1/1 s to 1/10,000 s
BLC (Back Light Compensation) Exposure Noise reduction
Yes Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR 2D/3D NR
Frequency S/N ratio Image effect
50Hz & 60Hz ≥50dB Mirror/ Flip Freeze / WDR / BLC
WDR (Wide Dynamic Range)
Yes

Pan tilt parameter

Pan rotation Tilt rotation Pan control speed
-170°~+170° -30°~+90° 0.1 ~ 100°/Sec
Tilt control speed Preset speed Preset number
0.1 ~ 100°/Sec Pan : 200°/Sec, Tilt : 200°/Sec 10 Locations by Remote, 256 vis RS232

IP streaming

Resolution (Max) Video compression Audio compression
1080P (60PFS) H.264,H.265.MJPEG AAC, G.711,PCM
Protocol Bitrate Bitrate control mode
IPv6,IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP,VISCA over IP 512Kbps ~ 32Mbps VBR/CBR
Multi-stream capability SRT protocol
1080P60 mode:
1080P60 * 1, 1080P60 * 1, 720P10 * 1
Yes

I/O interface

Video output Audio output Audio input
3G-SDI, HDMI, IP, USB 3G-SDI, HDMI, IP, USB MIC in/Line in
Baud rate Control interface Control protocol
2400, 4800, 9600, 38400 RS-232/RS-422/Ethernet VISCA/PELCO-D (RS232/RS422/IP), CGI (IP)
Network interface USB POE+
10/100/1000 Base - T 3.0 PoE+ (IEEE802.3at)
Power requirements
12V

USB

Connector Video format Resolution (Max)
USB3.0 (typeC) MJPG, YUV 1080P
Video class Audio class
UVC 1.1 UVC 1.0

Audio

Channel Codec Sample rate
2ch (stereo) AAC-LC (48/44.1.32.24K), G.711/PCM (8K) 48/44.1/32/24/16/8Khz

System

IR remote control Tally Power consumption
Yes Yes 18W
Operating temperature Operating humidity Storage temperature
0°C ~ +40°C 20%~80% -20°C ~ +60°C
Storage humidity Dimensions Net Weight
20% ~ 95% W180*D145*H183.5mm 1.7 kg(+/-0.1) (3.75 lbs)
Kensington lock Application Accessory
Yes Indoor Remote control, 12V power adapter, power cable, Din8 to D-Sub9 cable, RS232 in/out cable, screw for mount, ceiling mount, cable fixing plates, quick guide.
Software tools
AVer PTZ Management
CaptureShare


Warranty

Camera Accessories
3 Year 1 Year

Tracking

Mode Mechanism
Presenter, Zone Human detection (half or full body)

Ordering info

Part number
PAVPTR311

*Specifications subject to change without notice.
