Free to roam around the class with Hands-Free AI auto tracking
The TR310 utilizes advanced Artificial Intelligent (AI) algorithms which track either the entire body, or half the body instead of just the face. Therefore, tracking will not be lost if the teacher is wearing a PPE mask and remote students will never lose sight. Pre-set zone tracking can also be selected if the teacher has certain areas of the room where he or she constantly moves to. For example, zones can be set to the interactive flat panel area, the document camera station, and the dry erase board. Every time the teacher moves to one of these areas, the camera instantly recognizes and focuses on that location. If a second presenter joins the lesson, the Click to Track allows the teacher to instantly set the tracking to that presenter. The included remote control also allows teachers to manually redirect the camera to any location during their lesson.
Seamless with all major distance learning platforms
Whether you are using Zoom, Microsoft Teams, Google Hangout or a combination of any and all, the TR310 will seamlessly work with all major Distance Learning platforms. Instead of choppy, grainy webcam video, give your remote students a clear, true life experience of every lesson you conduct.

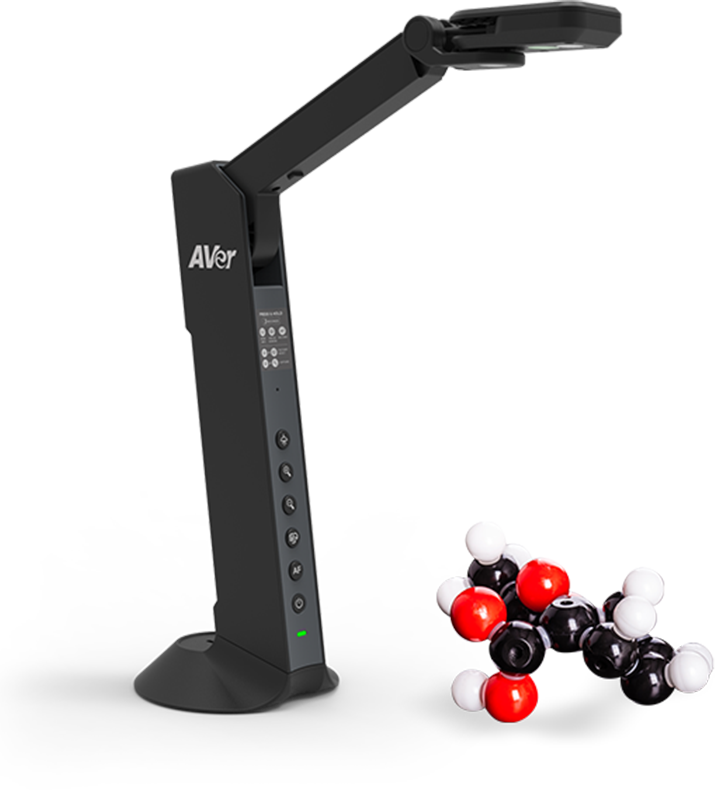

Use your document camera simultaneously
Conducting a science experiment? Showcasing student work? Reading along from a book? Give your remote students a full view of both you and the document camera lessons you are conducting at the same time! Give your in-class and remote students the same lesson experience regardless of their physical location.
Intuitive, Interactive and Free Software for Teachers and IT Managers

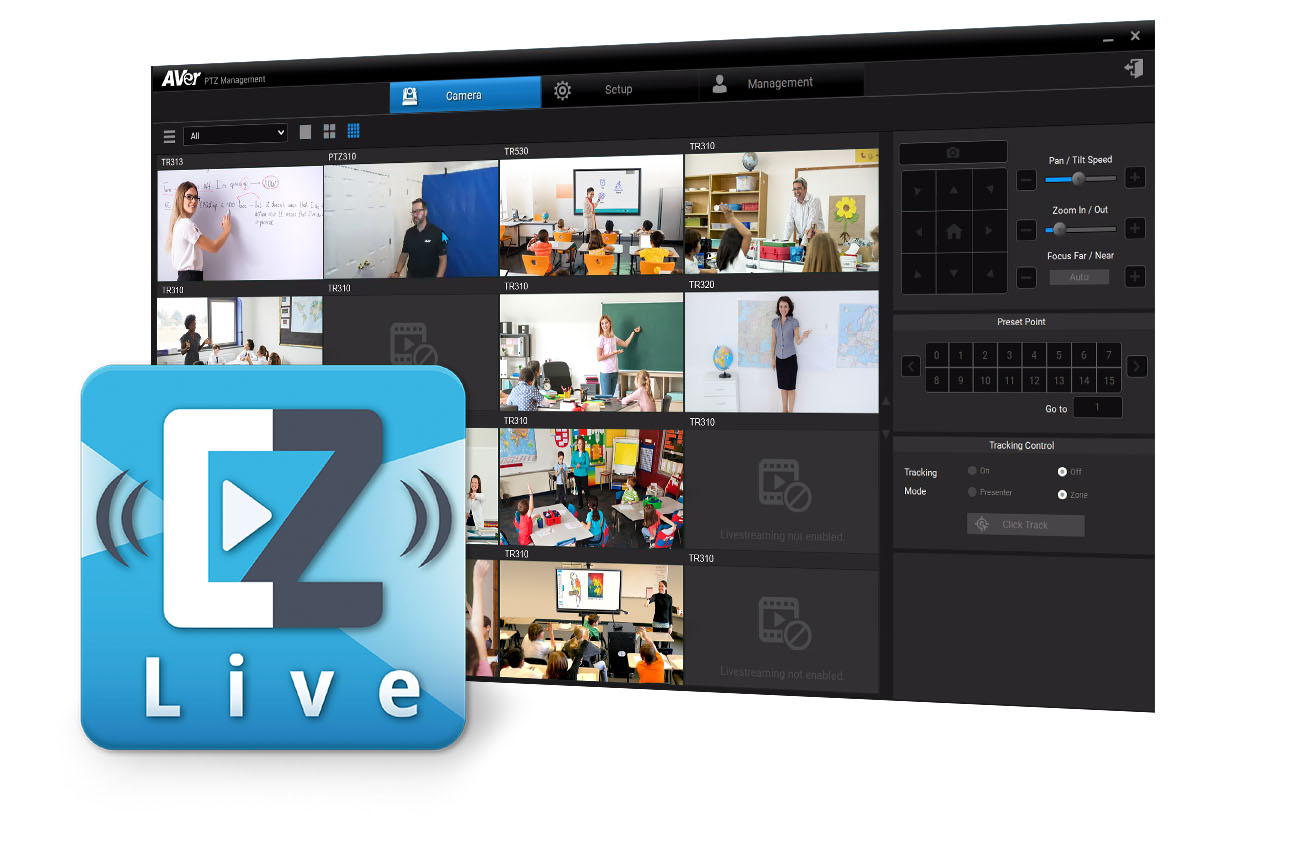

Enhance your distance learning and engage your remote students with CaptureShare, our interactive distance learning software that enables teachers to deliver engaging lessons for your students no matter where they are learning from. For your IT staff managing your distance learning network, our PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered with the ability to manage and maintain hundreds of cameras from a single location.
Exceptional Service and Warranty Protection
The standard 3-year bumper to bumper warranty combined with a 24-hour replacement guarantee should the unexpected happen, your remote students will not miss a beat if something goes wrong.
Specifications
Front
Back
Camera
| Sensor | Pixel | Output resolution |
|---|---|---|
| 1/2.8" CMOS | 2MP | Resolution : 1080p/720p Frame Rate : 60/59.94/50/30/29.97/25 |
| TV line | Focal length | Iris |
| 900 (center/wide) | f = 3.9 ~ 39 mm | F=1.6(wide) ~ 3.0(tele) |
| Optical zoom | Digital zoom | Total zoom |
| 10X | 12X | 120X |
| D FOV | H FOV | V FOV |
| 78°(wide)~9°(Tele) | 70°(wide)~8°(Tele) | 42°(wide)~5°(Tele) |
| Minimum illumination | Minimum working distance | Focus |
| 0.4 lx (50 IRE, F1.6, Max. AGC, 1/30) | Wide 0.3m, Tele 1.5m | Auto/Manual/One Push |
| White balance | Gain | Shutter speed |
| Auto /Manual | Auto /Manual | 1/1 s to 1/10,000 s |
| BLC (Back Light Compensation) | Exposure | Noise reduction |
| Yes | Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR | 2D/3D NR |
| Frequency | S/N ratio | Image effect |
| 50Hz & 60Hz | ≥50dB | Mirror/ Flip Freeze / WDR / BLC |
| WDR (Wide Dynamic Range) | ||
| Yes |
Parameter
| Pan angle | Tilt angle | Pan control speed |
|---|---|---|
| -170°~+170° | -30°~+90° | 0.1 ~ 100°/Sec |
| Tilt control speed | Preset speed | Preset number |
| 0.1 ~ 100°/Sec | Pan : 200°/Sec, Tilt : 200°/Sec | 10 Locations by Remote, 256 vis RS232 |
IP streaming
| Resolution (Max) | Video compression | Audio compression |
|---|---|---|
| 1080P (60PFS) | H.264,H.265.MJPEG | AAC, G.711,PCM |
| Protocol | Bitrate | Bitrate control mode |
| IPv6,IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP,VISCA over IP | 512Kbps ~ 32Mbps | VBR/CBR |
| Multi-stream capability | NDI protocol | SRT protocol |
| 1080P60 mode: 1080P60 * 1, 1080P60 * 1, 720P10 * 1 |
No | Yes |
I/O interface
| Video output | Audio output | Audio input |
|---|---|---|
| HDMI, IP, USB | HDMI, IP, USB | MIC in/ Line in |
| Baud rate | Control interface | Control protocol |
| 2400, 4800, 9600, 38400 | RS-232 / RS-422 / Ethernet | VISCA/PELCO-D (RS232/RS422/IP), CGI (IP) |
| Network interface | USB | POE+ |
| 10/100/1000 Base - T | 3.0 | PoE+ (IEEE802.3at) |
| Power requirements | ||
| 12V |
USB
| Connector | Video format | Resolution (Max) |
|---|---|---|
| USB3.0 (typeC) | MJPG, YUV | 1080P |
| Video class | Audio class | |
| UVC 1.1 | UVC 1.0 |
Audio
| Channel | Codec | Sample rate |
|---|---|---|
| 2ch (stereo) | AAC-LC (48/44.1.32.24K), G.711/PCM (8K) | 48/44.1/32/24/16/8Khz |
System
| IR remote control | Tally | Power consumption |
|---|---|---|
| Yes | No | 18W |
| Operating temperature | Operating humidity | Storage temperature |
| 0°C ~ +40°C | 20%~80% | -20°C ~ +60°C |
| Storage humidity | Dimensions | Net Weight |
| 20% ~ 95% | W180*D145*H183.5mm | 1.7 kg(+/-0.1) |
| Application | Kensington lock | Warranty |
| Indoor | Yes | Camera : 3 years Accessories : 1 year |
| Accessory | ||
| Remote control, 12V power adapter, power cable, Din8 to D-Sub9 cable, cable fixing plates, quick guide. |
Tracking
| Mode | Mechanism | |
|---|---|---|
| Presenter, Zone | Human detection (half or full body) |
Ordering info
| Part number | ||
|---|---|---|
| PAVPTR310 |
Optional accessories
CL01 PTZ Camera Controller
SKU: PTCAMCTRL
Camera Mount
SKU: COMSVCMNT Install Guide
L-Type for Wall
Camera Mount
SKU: PTMLTCM01 Install Guide
Ceiling Mount
Remote Control
SKU: PTRCPTZ02
RS-232 Din8 to
SKU: PTDIN8PT1
D-Sub 9 cable
AVer RS232
SKU: PTRSINOUT
In/Out cable
AVer 12V 5A
SKU: PTTR12V5A
Power Adapter
