Essential tools to enhance learning

Make notes clearly visible with responsive and precise writing on the feature-rich whiteboard. Use a different color for each step in an equation with a rainbow palette of colors available. Encourage participation by having multiple students work to solve a problem at the same time.

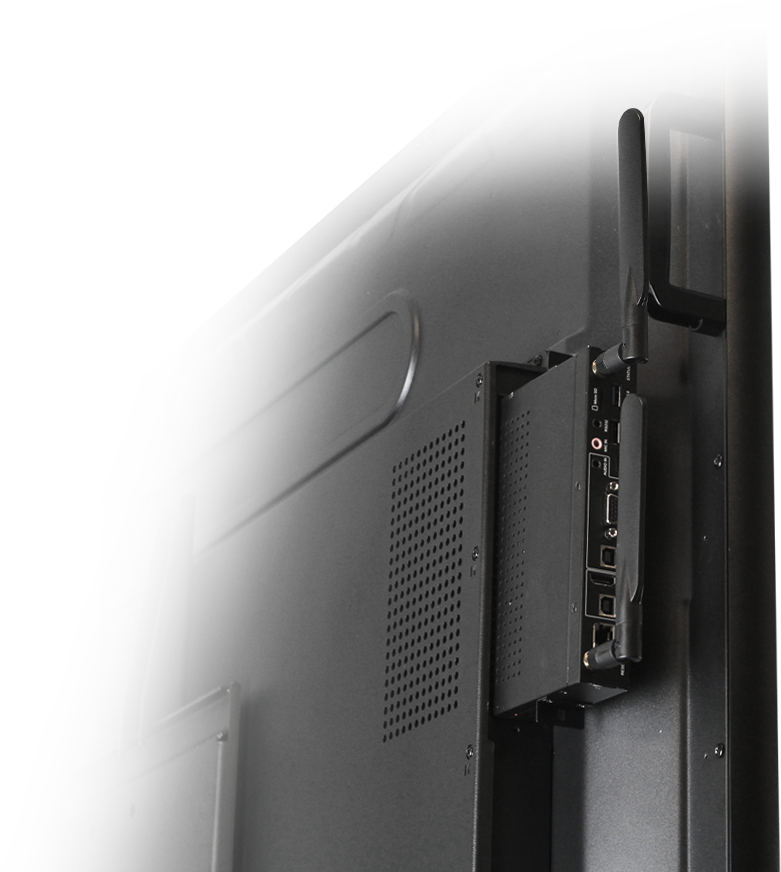

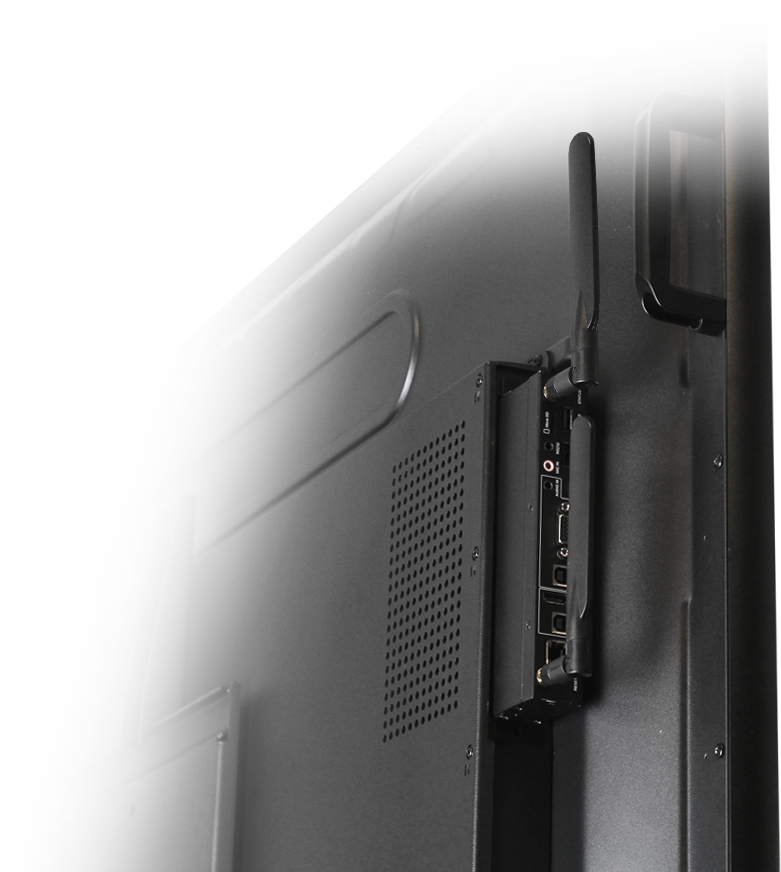

Futureproof technology

Keep up with constantly changing technology with the upgradeable built-in Android Module. The low power and high-performance computing provide an optimal experience for any application.

upgradeable
upgradeable upgradeable upgradeable
wifi wifi

Transform lessons in new ways

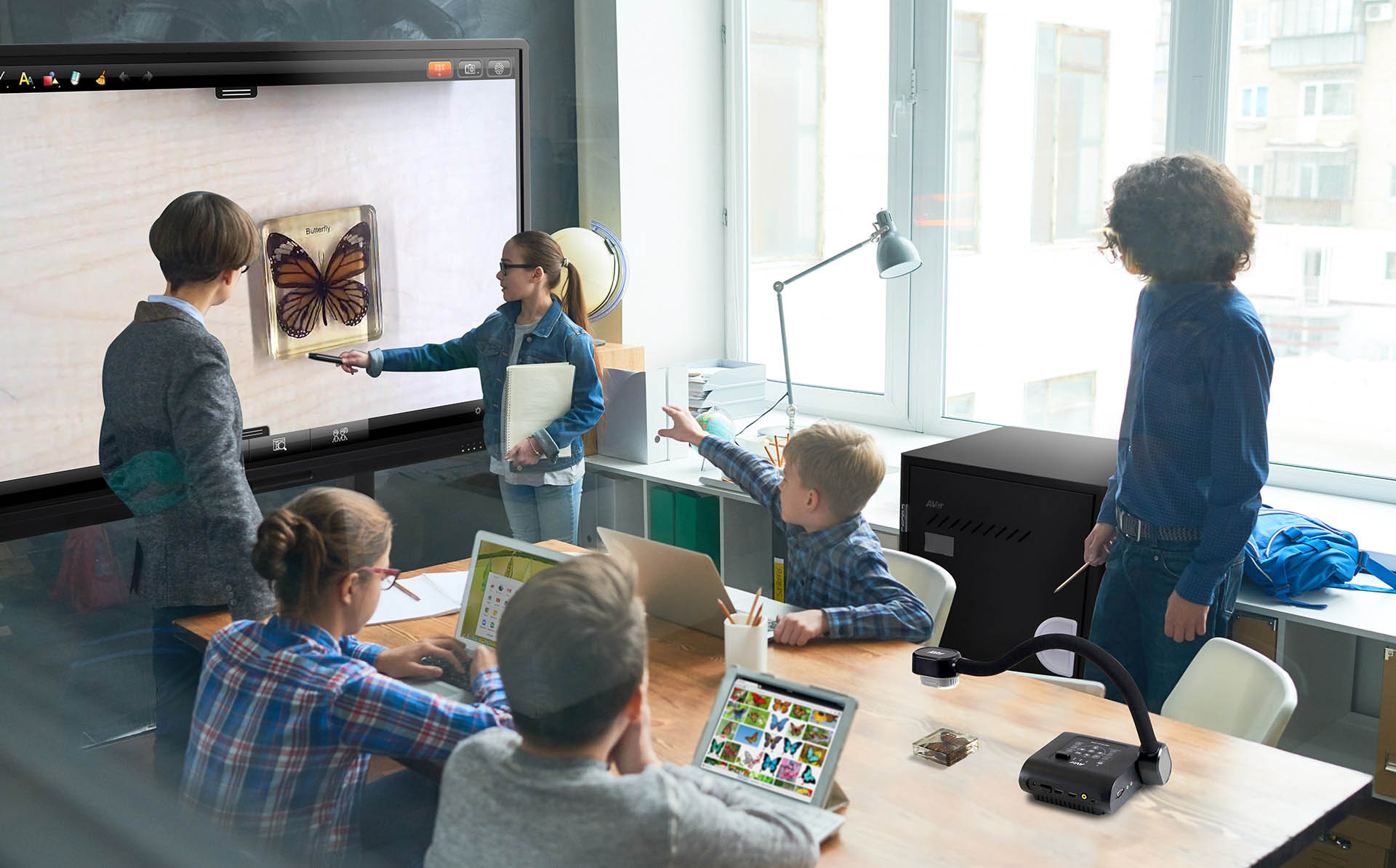

Take learning further with wireless AVer document camera integration. Teach from a student's desk to show a live chemistry experiment, or share a student's art project with the entire class. Put creative minds to work and inspire students to show their work.

Experience simplicity and security

Built for the classroom with Android's most advanced operating system to easily navigate through different apps, and lesson plans. Every interactive flat panel also comes with screen and app lock to promote safe learning, and make any app or the entire screen password protected.

warranty

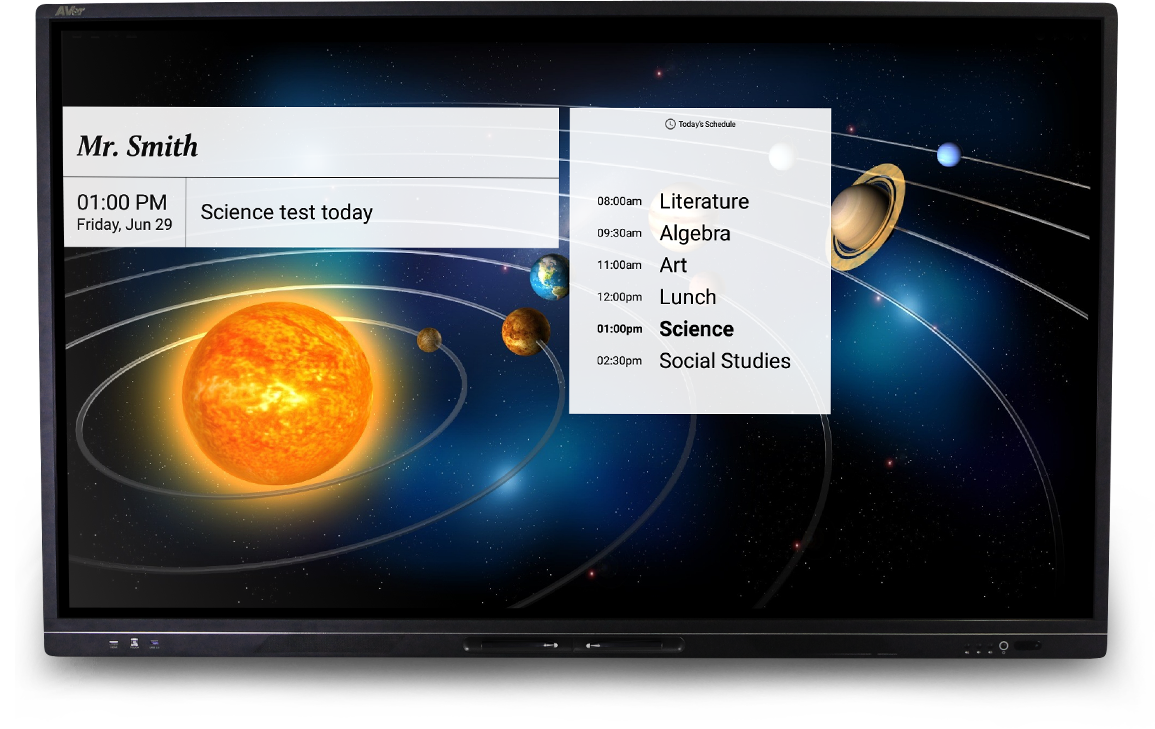

Save time and stay organized

Make more time for learning with the only interactive flat panel to provide a class schedule, and digital bulletin board. Customize the home screen, and let students see what fun activities are planned for class.

customer

Reliable customer care included

Every interactive flat panel comes standard with AVer's best-in-class service and warranty program. Advance replacement and repair mean no classroom disruptions due to technology. Training and services are also provided to ensure smooth deployment, and an exceptional product experience.

Specifications

cp3 series


ModelCP3-65i (CP654IB)CP3-75i (CP754IB)CP3-86i (CP864IB)
SKUIFPCP365iIFPCP375iIFPCP386i
Display Panel
Active Screen Size (inches)65"75"86"
Display BacklightLEDLEDLED
Display RatioLandscape 16:9Landscape 16:9Landscape 16:9
ResolutionUHD3840 x 2160UHD3840 x 2160UHD3840 x 2160
LCD Brightness450cd/m2450cd/m2 400cd/m2
Contrast Ratio (typical)1200:11200:11200:1
Response Time (typical)≦6ms≦8ms≦8ms
Viewing Angle178˚178˚178˚
Power Consumption180W (system boot up)330W (system boot up)380W (system boot up)
Touch Surface MaterialTempered Glass 4mm Level 7 MoHSTempered Glass 4mm Level 7 MoHSTempered Glass 4mm Level 7 MoHS
Touch Surface TechnologyAnti-Glare GlassAnti-Glare GlassAnti-Glare Glass
Transparency>88%>88%>88%
Touch SensorInfraredInfraredInfrared
Touch Points 20 points (Win/Android);
Multi-touch gesture on MAC
1 point for Chrome
20 points (Win/Android);
Multi-touch gesture on MAC
1 point for Chrome
20 points (Win/Android);
Multi-touch gesture on MAC
1 point for Chrome
Touch Screen Writing ToolsWriting Pen or FingerWriting Pen or FingerWriting Pen or Finger
Positioning Accuracy±1mm (90% area)±1mm (90% area)±1mm (90% area)
Communication InterfaceUSB-B x 4 (1x front, 3x back) / Type-C x1USB-B x 4 (1x front, 3x back) / Type-C x1USB-B x 4 (1x front, 3x back) / Type-C x1
Life TimeUp to 50,000hrsUp to 50,000hrsUp to 50,000hrs
Frame MaterialAluminumAluminumAluminum
CPUDual-core ARM Cortex-A72 1.8Ghz processor and Quad-core ARM Cortex-A53 1.4Ghz processorDual-core ARM Cortex-A72 1.8Ghz processor and Quad-core ARM Cortex-A53 1.4Ghz processorDual-core ARM Cortex-A72 1.8Ghz processor and Quad-core ARM Cortex-A53 1.4Ghz processor
GPUARM Mali-T860MP4ARM Mali-T860MP4ARM Mali-T860MP4
Android VersionAndroid 7.1Android 7.1Android 7.1
RAM4GB4GB4GB
ROM32GB32GB32GB
Speaker PositionForwardForwardForward
Speaker Max.Power Output16W x 216W x 216W x 2
Operation EnvironmentRelative Humidity ≤80﹪
Operation Temperature 0~+40℃
Storage Temperature -10~+60℃
Relative Humidity ≤80﹪
Operation Temperature 0~+40℃
Storage Temperature -10~+60℃
Relative Humidity ≤80﹪
Operation Temperature 0~+40℃
Storage Temperature -10~+60℃
Physical Specs & Dimensions
Panel Dimension (without wall mount bracket thickness)59.64 x 4.31 x 36.65 (L * W * H) in
1514.8 x 109.4 x 930.8 (L * W * H) mm
68.70 x 4.20 x 41.87 (L * W * H) in
1745x 106.7 x 1063.5(L * W * H) mm
78.67 x 4.50 x 47.61 (L * W * H) in
1998.3 x 114.3 x 1209.3 (L * W * H) mm
Packing Dimension65.35 x 9.65 x 41.14 (L * W * H) in
1660 x 245 x 1045 (L * W * H) mm
74.10 x 11.02x 45.67 (L * W * H) in
1880 x 280 x 1160 (L * W * H) mm
84.05 x 11.02 x 52.76 (L * W * H) in
2140 x 280 x 1340 (L * W * H) mm
Net Weight110 lbs (49.65kg ± 1.5kg) (incl. wall mount)146 lbs (65.95kg ± 1.5kg) (incl. wall mount)189 lbs (85.50kg ± 1.5kg) (incl. wall mount)
Gross Weight140 lbs (63.45Kg ± 1.5kg)189 lbs (85.70kg ± 1.5kg)237 lbs (107.3kg ± 1.5kg)
VESA Mount Installation Position500 x 400mm (4 x M6)600 x 400mm (4 x M8)700 x 400mm (4 x M8)
Connectivity
Front Interface Input PortsHDMI In x 1, Touch USB-B x 1, USB 3.0 x 1HDMI In x 1, Touch USB-B x 1, USB 3.0 x 1HDMI In x 1, Touch USB-B x 1, USB 3.0 x 1
Rear Side PortsHDMI In x 2, VGA in x1, Touch USB-B x 3, USB2.0 x1, USB3.0x1, Type-C (AV in+Touch)x1, Audio inx1, Mic inx1, MicroSD readerx1, RS-232 jack x1, Audio out x1, SPDIF out x1, Service port x1, Gigabit Lanx1, Antenna port x2HDMI In x 2, VGA in x1, Touch USB-B x 3, USB2.0 x1, USB3.0x1, Type-C (AV in+Touch)x1, Audio inx1, Mic inx1, MicroSD readerx1, RS-232 jack x1, Audio out x1, SPDIF out x1, Service port x1, Gigabit Lanx1, Antenna port x2HDMI In x 2, VGA in x1, Touch USB-B x 3, USB2.0 x1, USB3.0x1, Type-C (AV in+Touch)x1, Audio inx1, Mic inx1, MicroSD readerx1, RS-232 jack x1, Audio out x1, SPDIF out x1, Service port x1, Gigabit Lanx1, Antenna port x2
HDMI & HDCPLicensedLicensedLicensed
HDMI In333
VGA In111
Type-C AV in+ Touch111
USB-B for touch444
PC-Audio In111
Mic In111
Audio Out111
USB 3.0222
USB 2.0111
SD Reader111
SPDIF111
RS232111
Gigabit LAN RJ45111
Mini PC mount75x75mm or 100x100mm75x75mm or 100x100mm75x75mm or 100x100mm
Wall Mount BracketIncludedIncludedIncluded
MountingVESA 500mm×400mm, 4xM6VESA 600mm×400mm, 4xM8VESA 700mm×400mm, 4xM8
Product Features & Software
Android OS 7.1
Android Annotation
Writing Pen
Screen Share
Warranty & Service
Warranty5 years5 years5 years

AVer Advantages

  • Screen Share

    Screen Share

  • Upgradeable

    Upgradeable Module

  • Wireless doc cam

    Wireless AVer Doc Cam Integration

  • Screen App Lock

    Screen & App Lock

  • Split

    Split-Screen Multitasking

  • Built-in whiteboard

    Built-In Modern Whiteboard

  • Bulletin

    Digital Bulletin Board

  • 5-yr warranty

    5-Yr Warranty
