Healthcare environments require more than standard video technology. Remote patient care depends on clear, detailed imaging that supports clinical decisions — whether viewing a medication label, assessing a patient’s condition, or reading equipment settings from across the room.
The AVer MD331UI was built for these demands, combining a 4K sensor, 30X optical zoom, 10W speakerphone, and dual microphones into a single medical grade camera. Ideal for Tele-ICU monitoring, telehealth carts, and clinical conferencing, it enables remote patient assessments, simplifies cart deployments, and supports seamless case reviews, specialist consultations, and care team meetings from any location.
Our industry-leading AVerCare warranty program offers 3 years protection and *24-hour replacement to give you total peace of mind.
4K Sensor PTZ Lens
Clinical-grade 4K imaging with 30X optical zoom gives remote providers the visual clarity to assess patients, monitor room activity, and inspect equipment settings from any distance. The PTZ design enables precise camera positioning and close-up views of critical details such as medication labels, patient condition, and bedside monitors. Ideal for Tele-ICU, telehealth, and virtual rounding environments.
Flexible PTZ Control
Reposition the camera manually, by remote, or through software for fast and easy viewing adjustments. Bedside staff and remote clinicians both have convenient control to frame patients, equipment, or the room as needed. Ideal for Tele-ICU, telehealth, and collaborative care environments where flexibility and responsiveness matter.
Flexible PTZ Control
Reposition the camera manually, by remote, or through software for fast and easy viewing adjustments. Bedside staff and remote clinicians both have convenient control to frame patients, equipment, or the room as needed.
Dual Microphone System
An integrated dual microphone system adapts to each care setting with two audio modes in one device. Use the omnidirectional microphone to capture clear room-wide conversations, or switch to the directional microphone to focus on voices near the bedside. This flexible design helps improve communication clarity while reducing the need for additional external audio equipment.
Dual Microphone System
An integrated dual microphone system adapts to each care setting with two audio modes in one device. Use the omnidirectional microphone to capture clear room-wide conversations, or switch to the directional microphone to focus on voices near the bedside. This flexible design helps improve communication clarity while reducing the need for additional external audio equipment.

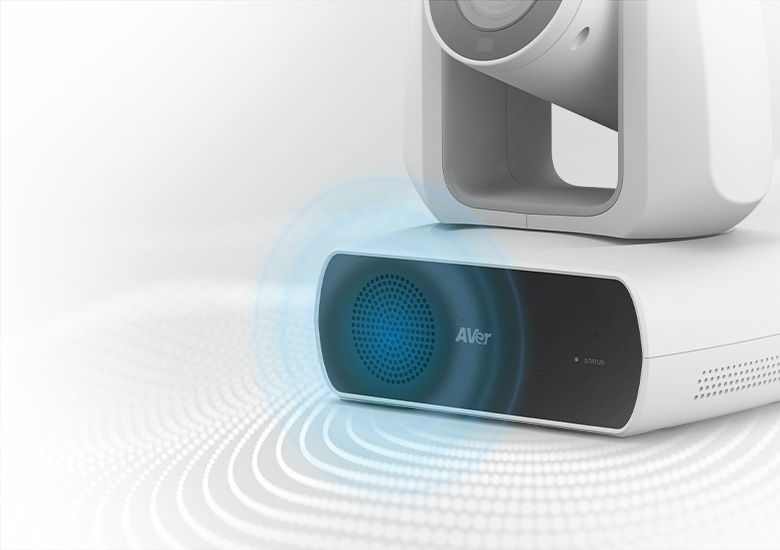

10W Integrated Speaker
A built-in 10W speakerphone delivers clear, powerful audio so remote providers can be easily heard at the bedside. Integrated noise reduction helps minimize background distractions, improving communication between patients, clinicians, and care teams without the need for additional external speakers.
10W Integrated Speaker
A built-in 10W speakerphone delivers clear, powerful audio so remote providers can be easily heard at the bedside. Integrated noise reduction helps minimize background distractions, improving communication between patients, clinicians, and care teams without the need for additional external speakers.

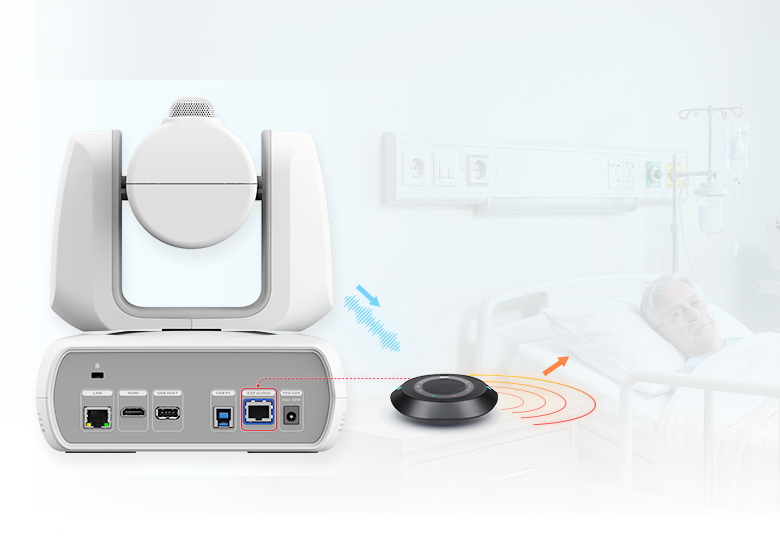

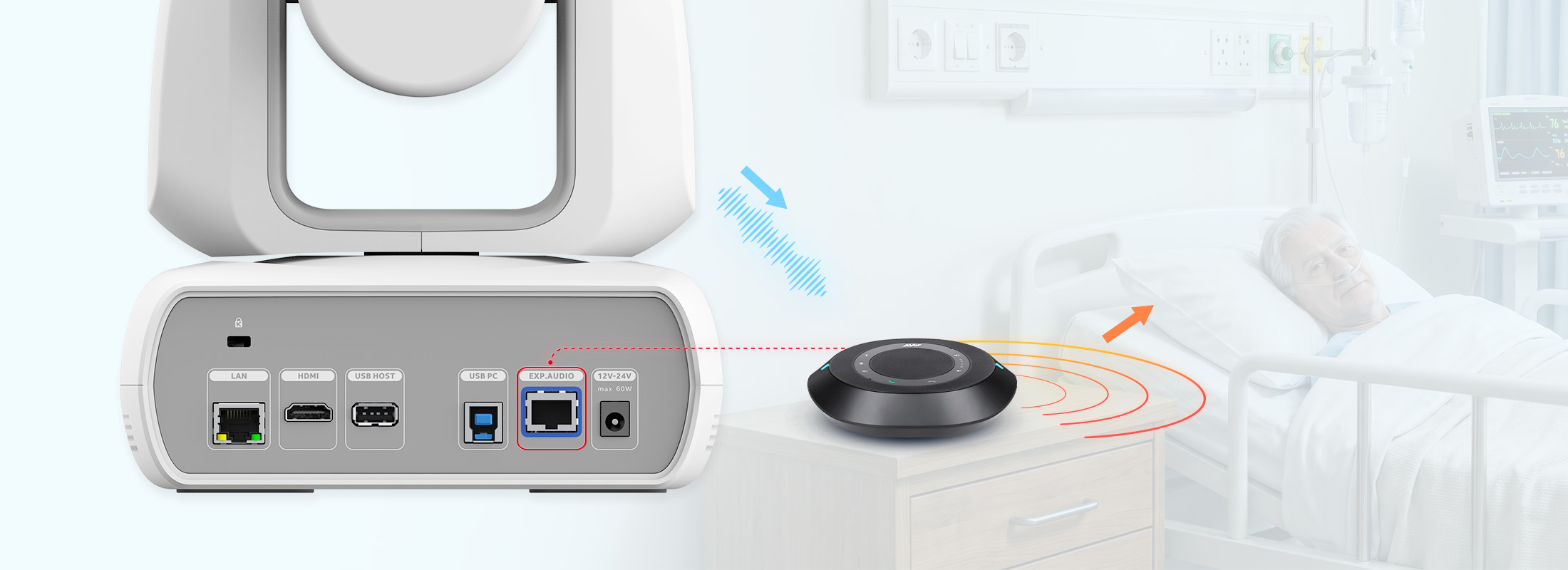

External Microphone Support
Connect an optional bedside speakerphone or external microphone when enhanced audio pickup is needed. This added flexibility helps accommodate different room layouts, patient needs, and communication preferences while expanding the MD331UI’s audio coverage when required.
External Microphone Support
Connect an optional bedside speakerphone or external microphone when enhanced audio pickup is needed. This added flexibility helps accommodate different room layouts, patient needs, and communication preferences while expanding the MD331UI’s audio coverage when required.
Enjoy the unprecedented quality and support
AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!
* 5-year protection is included only on “V2” Pro AV cameras and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.
Specifications
Front
Back
Camera
| Image Sensor | Effective Picture Elements | Output Resolutions |
|---|---|---|
| 1/2.8” 4K Sony Exmor CMOS | 8 Megapixels | Resolution: 4K / 1080p / 720p Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25 |
| Minimum Illumination | S / N Ratio | Gain |
| 0.7 lux (IRE50, F1.6, 30fps) | ≥ 50 dB | Auto, Manual |
| TV Line | Shutter Speed | Exposure Control |
| 1000 (Center / Wide) | 1/1 to 1/10,000 sec | Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR |
| White Balance | Optical Zoom | Digital Zoom |
| Auto, Manual | 30X | 1X |
| Total Zoom | Viewing Angles | Focal Length |
| 30X |
DFOV: 75.5° (Wide) to 3.1° (Tele) HFOV: 68.0° (Wide) to 2.7° (Tele) VFOV: 41.7° (Wide) to 1.5° (Tele) |
f = 4.3 mm (Wide) to 129 mm (Tele) |
| Aperture (Iris) | Minimum Working Distance | Pan / Tilt Angles |
| F = 1.6 (Wide) to 4.7 (Tele) | 0.1 m (Wide), 1.2 m (Tele) | Pan : ±170°, Tilt : ±90° |
| Preset Positions | Camera Control - Interface | Camera Control - Protocols |
| 10 (IR), 256 (IP) | USB, IP | USB, VISCA, CGI (IP) |
| Image Processing | Image Stability | Power Frequencies |
| Mirror / Flip / Freeze / WDR / BLC | Yes | 50 Hz, 60 Hz |
AI Function
| Modes | ||
|---|---|---|
| Face / Eyes Tracking, Fall / Bed Egress Detection |
Privacy
| Protection Modes | ||
|---|---|---|
| Local Privacy Mode, Mosaic Function |
General
| Power Requirement | Power Consumption | PoE |
|---|---|---|
|
Adapter: AC 100 - 240V to DC 12V / 3.34A Power Input: DC 12–24V, 60W Max. |
60W | N / A |
| Dimensions (W x H x D) | Net Weight | Housing Material |
| 195.0 x 222.4 x 155.0 mm | 2.6 kg | Anti-UV |
| Application | IR Night Vision | Security |
| Indoor | Yes | Kensington Slot |
| Remote Control | Operating Conditions | Storage Conditions |
| Infrared |
Temperature: 0 °C to +40 °C ; Humidity: 20% to 80% |
Temperature: -20 °C to +60 °C ; Humidity: 20% to 95% |
Audio
| Channel | Codec | Built-in Microphone |
|---|---|---|
| 2ch Stereo | AAC-LC (48K) | Yes, 2 Microphones |
Interface
| Video Outputs | Audio Outputs | Audio Inputs |
|---|---|---|
| HDMI®, IP, USB | HDMI®, IP, USB | N/A |
IP Streaming
| Resolution | Maximum Frame Rate | Network Video Compress Formats |
|---|---|---|
| 4K 60fps | 4K 60fps | H.264, H.265, MJPEG |
| Range of Bit-Rate Setting | Bit-Rate Control Modes | Network Interface |
| 512 Kbps to 64 Mbps | VBR, CBR | 10 / 100 / 1000 Base-T |
| Multi-Stream Capability | Network Protocols | |
| 2 (RTSP / Web Page), 4K 60fps (max.) |
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
USB
| Connector | Video Format | Maximum Video Resolution |
|---|---|---|
| USB Type-B 3.2 Gen 1 | MJPEG, YUY2 | 2160p |
| USB Video Class (UVC) | USB Audio Class (UAC) | |
| UVC 1.1 | UAC 1.0 |
Web UI
| Live Video Preview | Camera PTZ Control | Camera/Image Adjustment |
|---|---|---|
| Yes | Pan, Tilt, Zoom, Focus, Preset Control | Exposure, White Balance |
| Network Configuration | ||
| DHCP, IP Address, Gateway, Subnet Mask, DNS |
Software Tools
| ViewCare | Room Management | |
|---|---|---|
| Support Windows® 10 or later | Supports Windows® 7 or later, macOS® 11.6 or later |
Warranty
| Camera | Accessories | Package Contents |
|---|---|---|
| 3 Years | 1 Years | Camera, Remote Control, Power Adapter, Power Cord, USB 3.0 Type-A to B Cable, Quick Start Guide |
| Optional Accessories | ||
| L-Type Wall Mount, Ceiling Mount Bracket, AVer CL01 PTZ Camera Controller, AVer Wi-Fi® Dongle |
*Specifications subject to change without notice.
