All AVer Pro AV cameras now come with NDI as a standard feature. Learn more here.

Great Video. No Compromises.

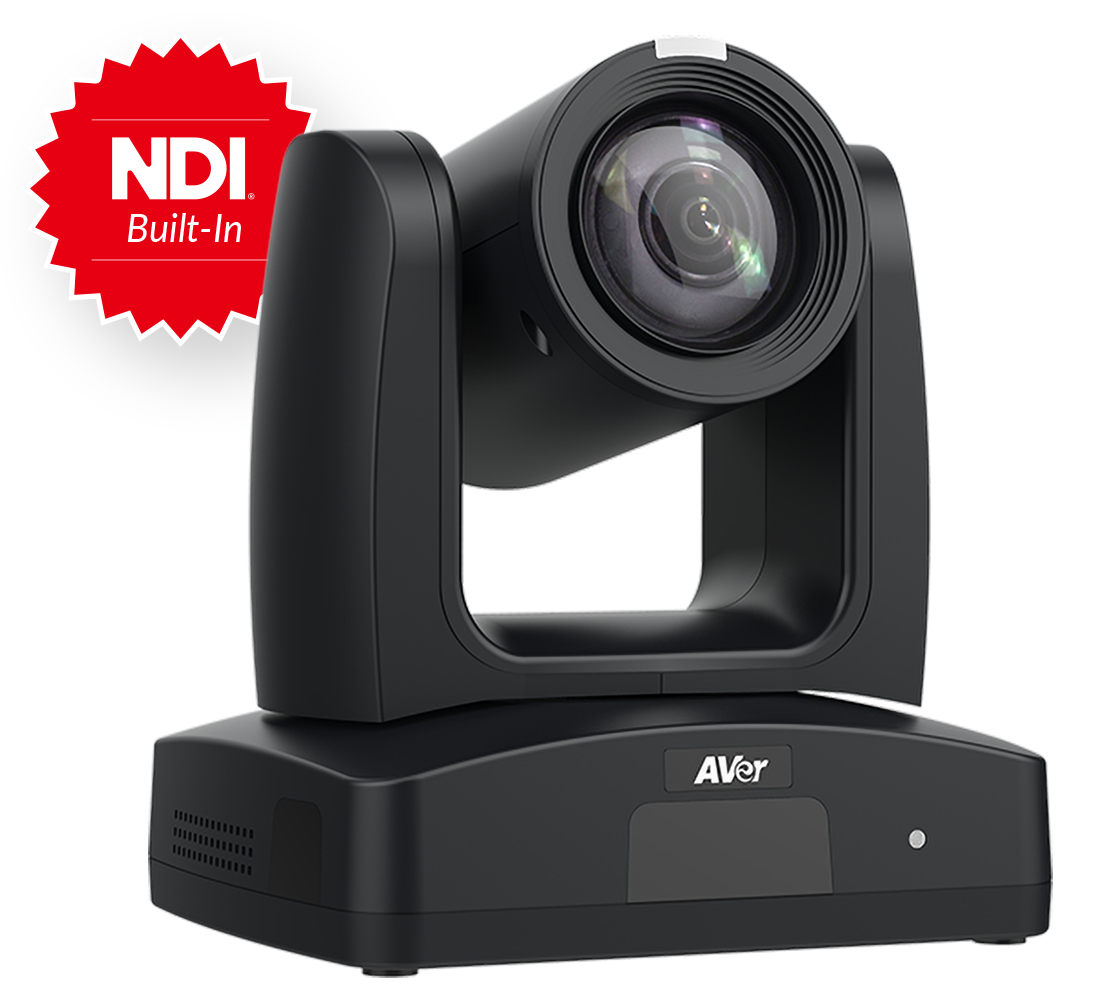

The AVer TR313V2 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 12X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator.

With 3G-SDI/HDMI/IP/USB output, PoE+, Visca control, and compatibility with all popular video platforms, you have all you need to connect with ease in any environment. Includes a ceiling mount to keep clear of live audiences below.

Our industry-leading AVerCare warranty program offers 5 years protection and 24-hour replacement to give you total peace of mind.

Upgrade your AVer camera with NDI®|HX here.

Supports NDI/HX2

Take advantage of the power of NDI|HX2 format with built-in encode support for your connected devices.
NDI|HX2

Presenter tracking

  • Capture every interaction
  • Either track full body or half body
  • Simple click to track and manually follow an additional presenter via remote control or Web UI
Presenter tracking

Zone tracking

  • Establish preset zones
  • Create video focused on content
  • Enhance the capture of content on multiple displays
Zone tracking

Hybrid mode

  • Camera auto switch between Presenter vs Zone mode
  • Combines the best features of Presenter and Zone mode
  • Flexibility of tracking presenter freely or fixed content
Hybrid mode

Wide dynamic range

The Wide Dynamic Range (WDR) of the camera uses special algorithms to balance dark or bright lighting for one clear image.

WDR WDR
Without WDR
WDR



Without WDR

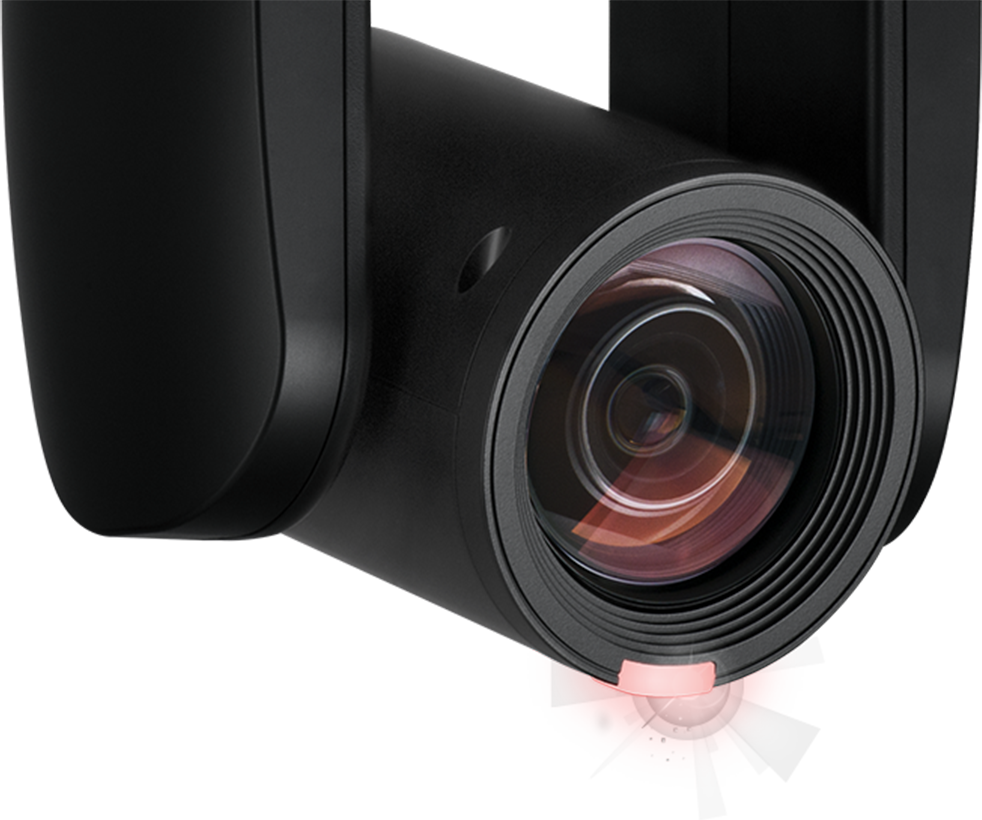

Tally light

Simplify multi-camera live video productions with an illuminated red light on the active camera.

Tally light

Software Compatible software

Free Software for Users and AV Managers

Whether you need a simple tool to control your PTZ or TR camera, or manage over a hundred on your network, AVer has great options. CaptureShare and PTZ Management for desktop and AVer PTZ Control Panel for iPad have you covered. For new voice tracking features, look to PTZ Link. Visit our support page for easy download of our desktop software.

CaptureShare & AVer PTZ Management & PTZ Control Panel & PTZ Link

Enjoy the unprecedented quality and support

AVerCare delivers industry-leading 5 or 3 year* warranty with Advanced Replacement and 24-hour turnaround time in the first year. We strive to provide industry leading product quality, service and support so you’re always up and running!

* 5-year protection is included only on “V2” and the newest Pro AV cameras, and the MT300N as of August 16, 2023. Optional 2-year extended warranty is available for purchase on 3-year warranty covered products only.

AVerCare

Specifications

Front
Front
Back
Back

Camera

Image sensor Pixel Output resolution
1/2.8" CMOS 8 megapixels Resolution: 4k*/1080p/720p
Frame Rate : 60/59.94/50/30/29.97/25
*So far 4K can only support 30/29.97/25
TV line Focal length Iris
1400 (center/wide) f = 3.9 ~ 46.8mm F = 1.6 (Wide) ~ 2.8 (Tele)
Optical zoom Digital zoom Total zoom
12X 12X 144X
D FOV H FOV V FOV
78°(wide)~7°(Tele) 70°(wide)~6°(Tele) 42°(wide)~3°(Tele)
Minimum illumination Minimum working distance Focus
0.5 lux (50 IRE, F1.6, Max. AGC, 1/30) Wide 0.3m, Tele 1.5m Auto/Manual/One Push
White balance Gain Shutter speed
Auto /Manual Auto /Manual 1/1 s to 1/10,000 s
BLC (Back Light Compensation) Exposure Noise reduction
Yes Auto, Manual, Priority AE( Shutter, IRIS), BLC, WDR 2D/3D NR
Frequency S/N ratio Image effect
50Hz & 60Hz ≥50dB Mirror/ Flip Freeze / WDR / BLC
WDR (Wide Dynamic Range) Included accessories
Yes Remote control, 12V power adapter, power cable, Din8 to D-Sub9 cable, RS232 in/out cable, screw for mount, ceiling mount, cable fixing plates, quick guide.

Pan tilt parameter

Pan rotation Tilt rotation Pan control speed
-170°~+170° -30°~+90° 0.1 ~ 100°/Sec
Tilt control speed Preset speed Preset number
0.1 ~ 100°/Sec Pan : 200°/Sec, Tilt : 200°/Sec 10 Locations by Remote, 256 vis RS232

IP streaming

Resolution (Max) Video compression Audio compression
4K (30PFS) H.264,H.265.MJPEG AAC,PCM
Protocol Bitrate Bitrate control mode
IPv6, IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP 512Kbps ~ 32Mbps VBR/CBR
Multi-stream capability SRT protocol NDI Protocol
4K mode:
4K30*1, 1080P30*1, 720P10*1
1080P60 mode:
1080P60 * 1, 1080P60 * 1, 720P10 * 1
Yes Upgradable (Click here)

I/O interface

Video output Audio output Audio input
3G-SDI, HDMI, IP, USB 3G-SDI, HDMI, IP, USB MIC in/Line in
Baud rate Control interface Control protocol
2400, 4800, 9600, 38400 RS-422/Ethernet RS232/RS422/IP
Network interface USB POE+
10/100/1000 Base - T 3.0 PoE+ (IEEE802.3at)
Power requirements
12V

USB

Connector Video format Resolution (Max)
USB3.0 (typeB) MJPG, YUV 2160P
Video class Audio class
UVC 1.1 UAC 1.0

Audio

Channel Codec Sample rate
2ch (stereo) AAC-LC(48K)/PCM(8K) 48Khz

System

IR remote control Tally Power consumption
Yes Yes 18W
Operating temperature Operating humidity Storage temperature
0°C ~ +40°C 20%~80% -20°C ~ +60°C
Storage humidity Dimensions Net Weight
20% ~ 95% W180*D145*H192mm 2.0 kg(+/-0.1) (4.4 lbs)
Kensington Lock Application
Yes Indoor
Software tools
AVer PTZ Management
CaptureShare
PTZ Control Panel for iPad
PTZ Link
OBS Plug in


Warranty

Camera Accessories
5 Year 1 Year

Tracking

Mode Mechanism
Presenter, Zone, Hybrid Human detection (half or full body)

Ordering info

Part number
PATR313V2

*Specifications subject to change without notice.

Package contents

  • Camera
    Camera
  • Drilling Paper
    Drilling Paper
  • Ceiling Mount Brackets
    Ceiling Mount Brackets
    SKU: PTMLTCM01 Install Guide
  • Quick Guide
    Quick Guide
  • Cable Fixing Plate
    Cable Fixing Plate
  • M2 x 4mm Screw
    M2 x 4mm Screw (x3)
  • Power Adapter & Power Cord
    Power Adapter & Power Cord
  • 6.5mm Screw (x2)
    6.5mm Screw (x2)
  • Remote Control
    Remote Control
  • M3 x 6mm Screw (x3)
    M3 x 6mm Screw (x3)
  • DIN8 to D-Sub9 Cable
    DIN8 to D-Sub9 Cable
    SKU: PTDIN8PT1
  • RS-232 In/Out Y Cable
    RS-232 In/Out Y Cable
    SKU: PTRSINOUT
  • Cable Tie (x4)
    Cable Tie (x4)

Optional accessories
